Intake Hose at Power Steering Pump

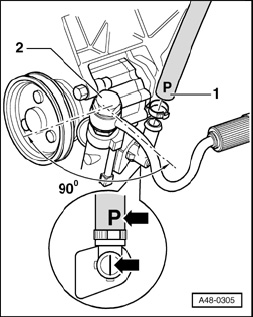

Intake hose at power steering pump, installation position





Illustration shows power steering pump with pressure line - 2 - and intake hose - 1 - on 6cyl. TDI engine. On other engine versions the pressure line and intake hose may be in different positions.

- Marking - P - on intake hose - 1 - must be aligned with seam on pump.
