Main Fuse, Connector Stations, Relay Carrier, Fuse Panel



Main Fuse, Connector Stations, Relay Carrier, Fuse Panel (Part 1):




Main Fuse, Connector Stations, Relay Carrier, Fuse Panel (Part 2):

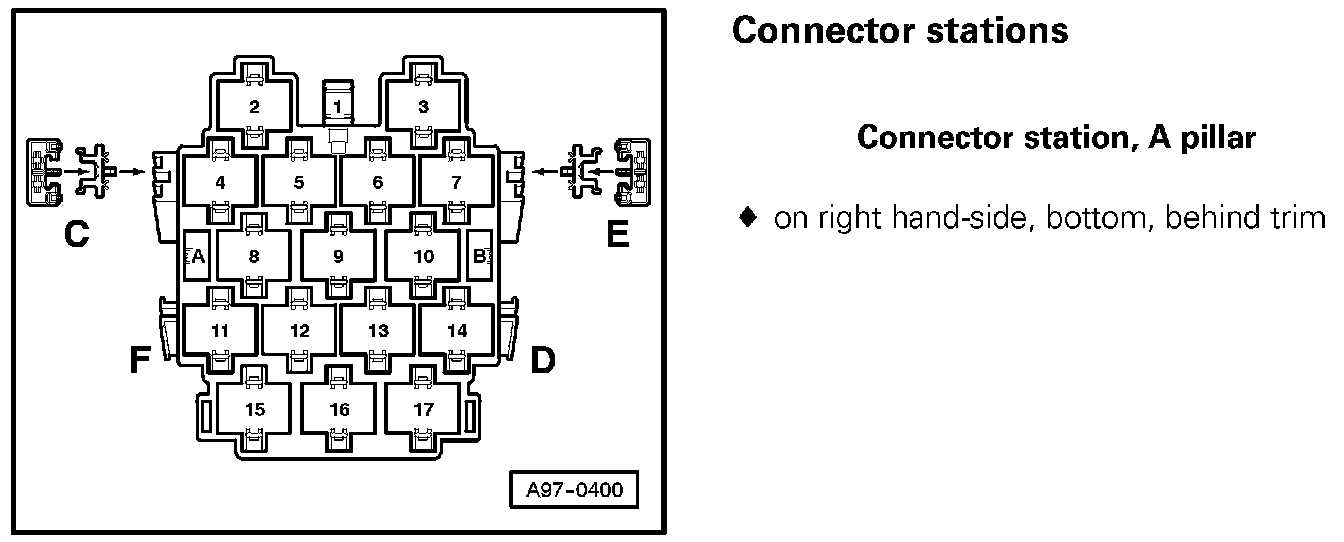

Connector Station, A Pillar


Connector Station, A Pillar:




Fuse Colors:




Connectors:




Fuses:






Connector Station Seat Wiring


Connector Station Seat Wiring:




Connectors:




Connector Station Seat Wiring:




Connectors:

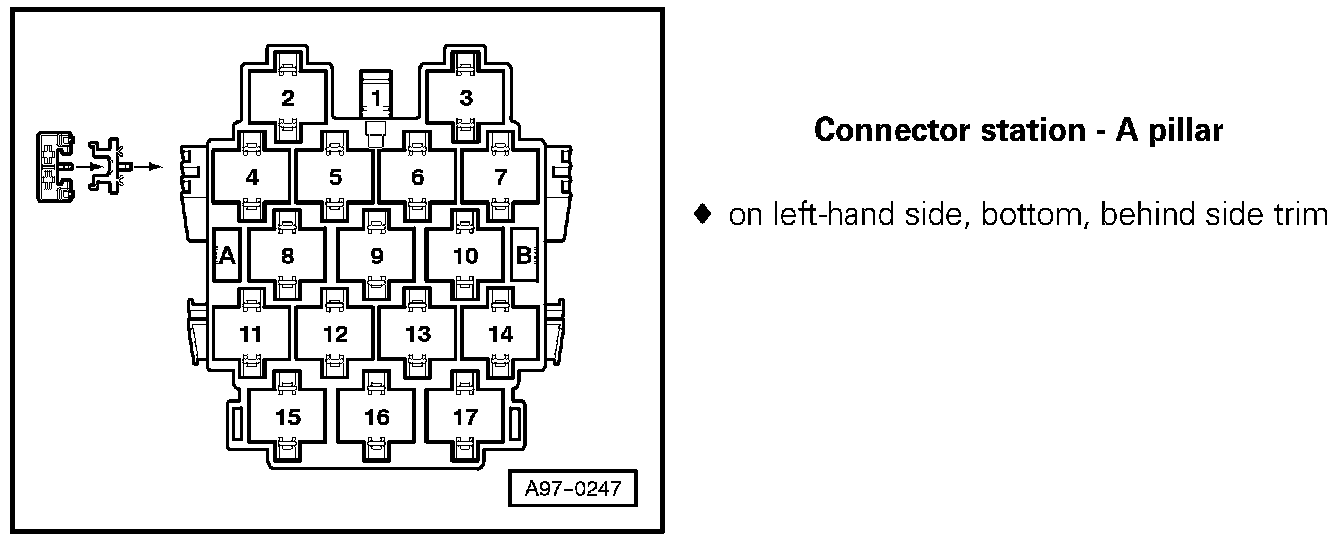

Connector station - A pillar


Connector Station - A Pillar:

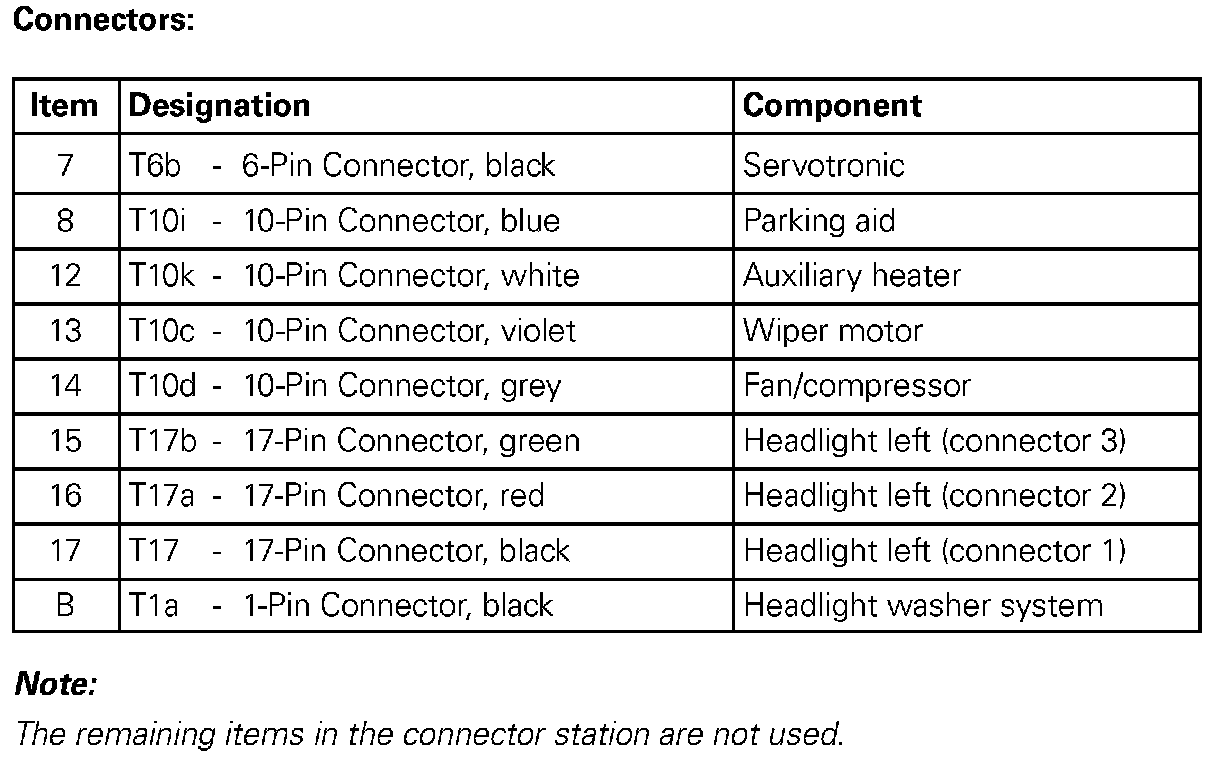

Connectors:

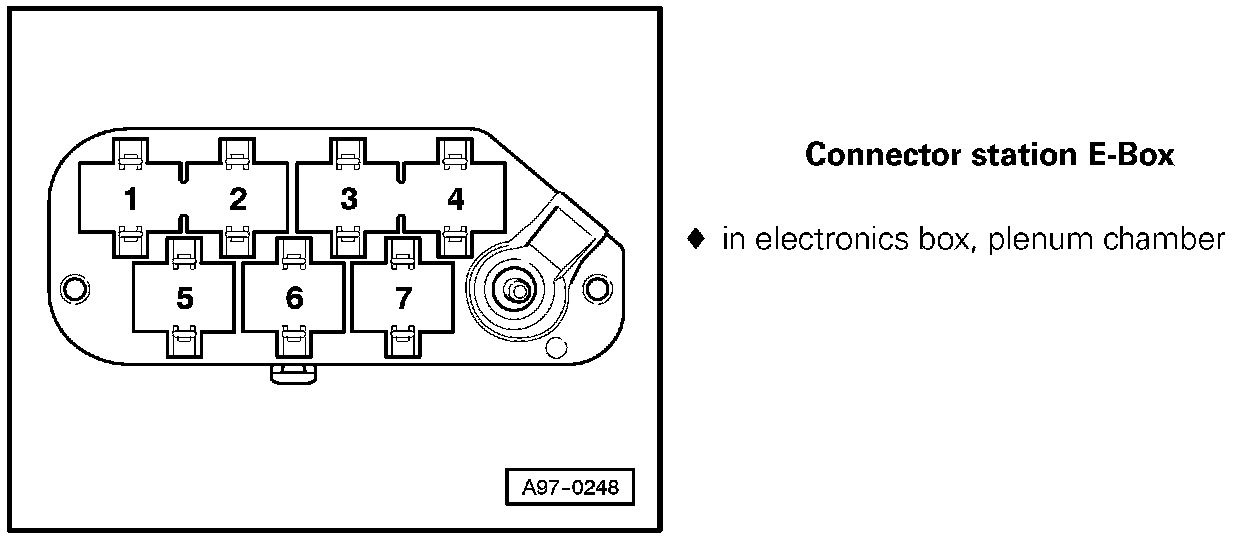

Connector station E-Box


Connection Station E-Box:

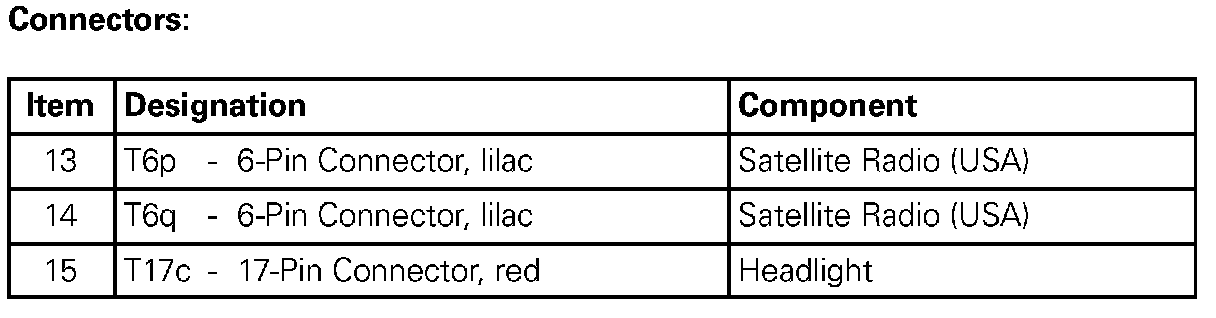

Connectors:
