Fuse: Locations: Overview

Main fuse, connector stations, relay/fuse carriers, fuse panel, from 2007 m. y.

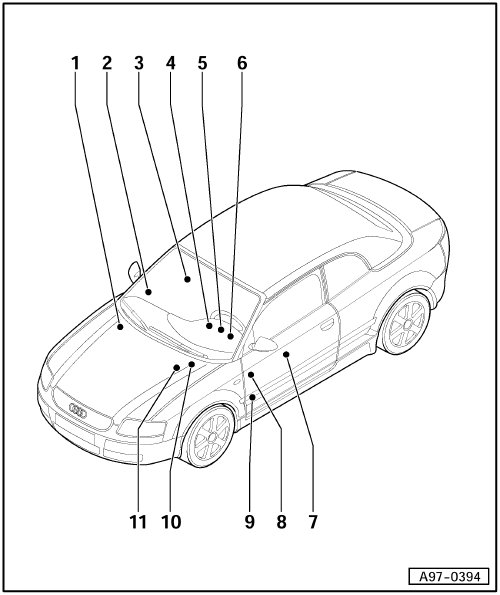

Overview







1 - Main fuse
• => Fig. 1 page 211/3

2 - Connector station - right A-pillar
• => Fig. 2 page 211/4

3 - Connector station - RF seat wiring
• => Fig. 3 page 211/5

4 - Relay carrier (3-position)
• => Fig. 7 page 211/8

5 - Relay carrier (9-position) with vehicle voltage control module
• => Fig. 8 page 211/9 - 211/10

6 - Relay carrier (4-position) with threaded connection
• => Fig. 9 page 211/11 - 211/12






7 - Connector station - LF seat wiring
• => Fig. 4 page 211/5

8 - Fuse panel
• => Fig. 11 page 211/26 - 211/31

9 - Connector station - left A-pillar
• => Fig. 5 page 211/6

10 - Connector station with threaded connection
• => Fig. 6 page 211/7

11 - Relay carrier (4-position)
• => Fig. 10 page 211/13 - 211/25
