Coupling Station, Right A-Pillar Trim

Coupling Station, Right A-Pillar Trim

Removing





Component location: on the A-pillar, inside the right footwell

- Switch off ignition and remove ignition key.

- Remove the lower A-pillar trim.

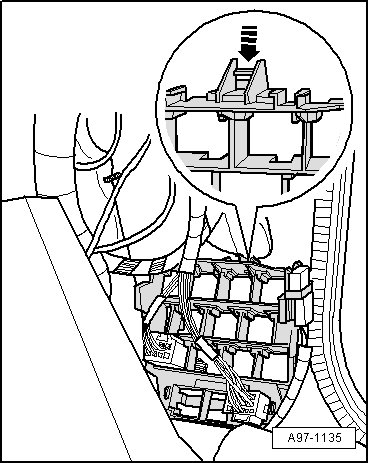

- Press clip in - direction of arrow - and disengage coupling station on A-pillar.

- Unclip fuse panels from coupling station.

- Remove relay or control modules, then unclip respective relay carrier.

• Check the exact connector station assignment in the current wiring diagram Wing diagrams, Troubleshooting & Component locations.

Installing

Install in reverse order of removal, observing the following:

- Install the lower A-pillar trim.
