System Specifications

Fastener Tightening Specifications





• 1 Always replace

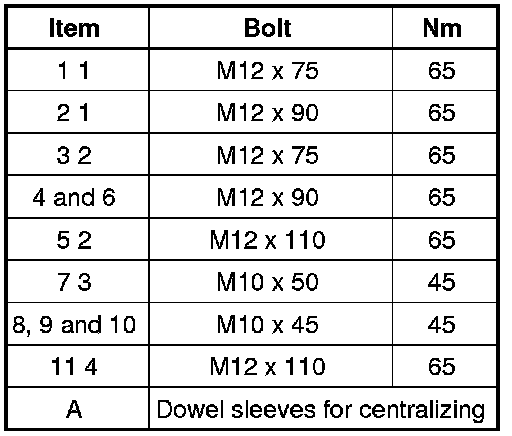

Transmission to Engine Bolt Tightening Sequence and Specifications









• 1 For securing starter to transmission

• 2 With bracket for wiring harness

• 3 Hammer head bolt with nut

• 4 With nut
