01X, 6-Speed Front-Wheel Drive M/T
Clutch pedal switch F36, removing and installing, 01X, 6-Speed Front-wheel Drive M/T
Note:
^ Clutch pedal switch F36 may only be installed once so as to ensure a firm fit.
Removing
- Remove storage compartment on drivers side.
- Disconnect electrical connector - 1 - on clutch pedal switch.
^ The clutch pedal - 3 - is in the normal position (i.e. not pressed down). The operating rod - arrow of the clutch pedal switch F36 should then rest against the clutch pedal.
- Release clutch pedal switch F36 - 2 - by turning 45° counter-clockwise and remove from guide.
Installing
^ Installation is perform in reverse sequence. Note the following:
- Pull out operating rod - arrow - all the way before installing clutch pedal switch F36.
^ The clutch pedal should be in the normal position (i.e. not pressed down).
- Guide clutch pedal switch F36 through mounting hole, press against clutch pedal and attach by turning 45° clockwise.
- Plug in connector for clutch pedal switch F36.
- Install storage compartment on drivers side.
Removing and installing clutch pedal starter interlock switch F194
Note:
^ To ensure a secure fit, the clutch pedal starter interlock switch F194 must not be installed more than once.
Removing
- Remove storage compartment on drivers side.

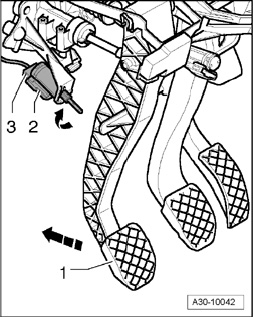

- Disconnect electrical connector - 3 - on clutch pedal starter interlock switch.
- Press clutch pedal - 1 - all the way down and hold it in this position.
- At the same time, release clutch pedal starter interlock switch - 2 - by turning it 45° in the direction indicated - arrow - and pull it out of the guide.
Installing
- Pull out operating rod - arrow - all the way before installing clutch pedal switch.

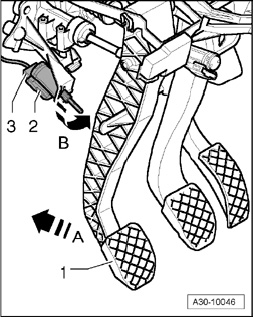

- When installing clutch pedal starter interlock switch, press clutch pedal - 1 - all the way down - arrow A -. Hold clutch pedal in this position.
- Guide clutch pedal starter interlock switch - 2 - through opening in retainer, and at the same time push operating rod against clutch pedal and secure switch by turning it 45° in the direction indicated - arrow B -.
- Connect electrical connector - 3 - on clutch pedal starter interlock switch.
- Install storage compartment on drivers side.
