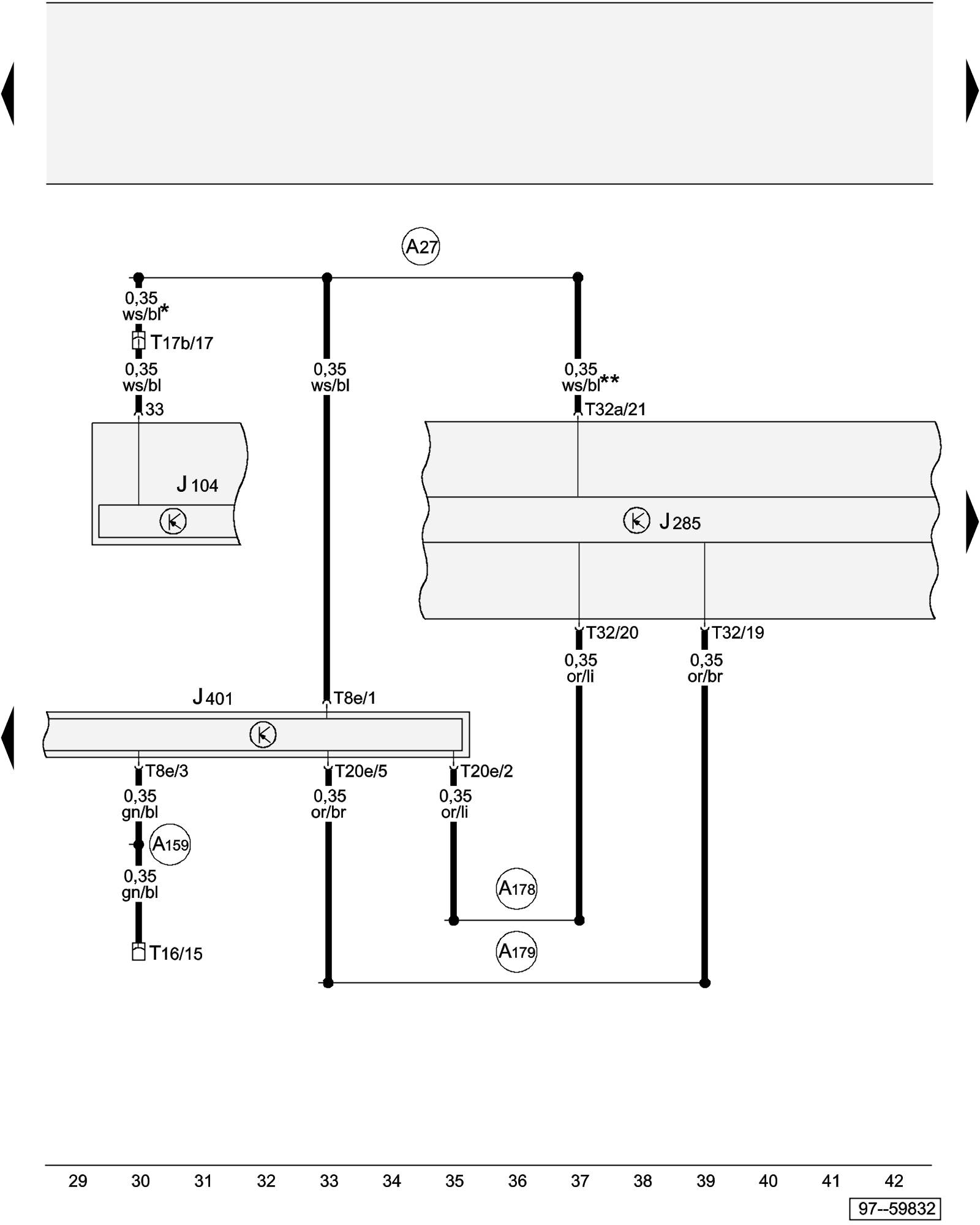

Diagram 23/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Instrument Cluster Control Module with display unit, Navigation System with CD Drive Control Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J104 - ABS/EDL Control Module Common Modules Overview

J285 - Instrument Cluster Control Module with display unit Common Modules Overview

J401 - Navigation System with CD Drive Control Module Navigation System Overview

T8e - 8-Pin Connector, black, navigation system with CD drive control module

T16 - 16-Pin Connector, black, diagnostic connector

T17b - 17-Pin Connector, green, connector station A-pillar, left Connector Station

T20e - 20-Pin Connector, black, navigation system with CD drive control module

T32 - 32-Pin Connector, blue, on instrument cluster

T32a - 32-Pin Connector, green, on instrument cluster

(A27) - Speedometer Connection (in instrument panel wiring harness)

(A159) - Connection (L) (in instrument panel wiring harness)

(A178) - Infotainment High-Bus Connection (in instrument panel wiring harness)

(A179) - Infotainment Low-bus Connection (in instrument panel wiring harness)

* - From July 2002

** - Not applicable from July 2002
