From Model Year 2006

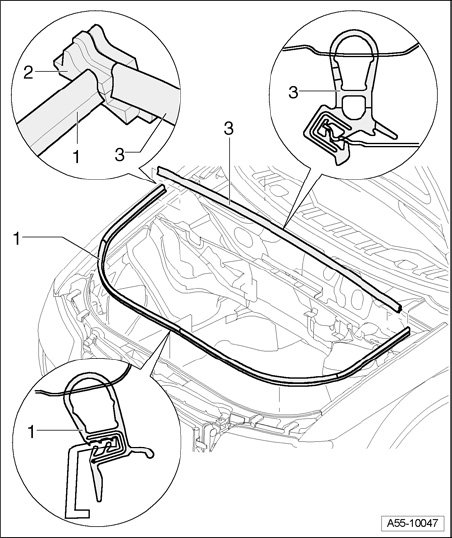

Front hood seal (from model year 2006) - assembly overview







1 - Gasket for lock carrier
- Apply gasket at left and right on foam piece.
- When doing this, make sure it is applied without gaps.
- Compress excess length of gasket along lock carrier.
2 - Left sealing profile
- Self-adhering, adhesion surfaces must be free of dust and grease.
3 - Gasket for plenum chamber
- Apply gasket at left and right on foam piece.
- When doing this, make sure it is applied without gaps.
- Compress excess length of gasket along front panel of plenum chamber.
