Noise Insulation Panel - Assembly Overview

Noise insulation panel-assembly overview

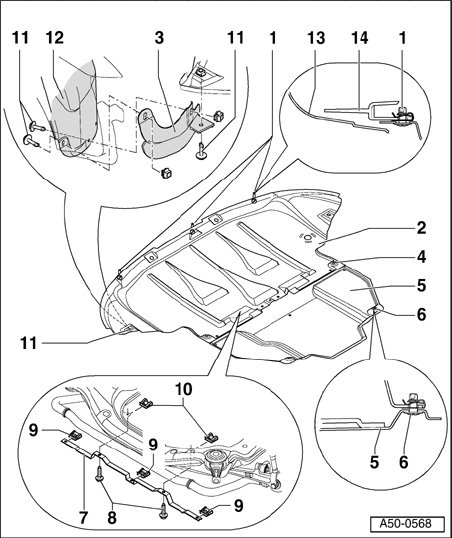

1 - Quick release screw
- Only loosen these quick release screws for lock carrier service position.
- Qty. 3
2 - Noise insulation, front
3 - Wheel spoiler
4 - Quick release screw
- Qty. 3
5 - Noise insulation panel rear
- Installed only with specific engine versions.
6 - Quick release screw
- Qty. 2
7 - Noise insulation mount
- Marking (recess) must point to left vehicle side.
8 - Screw
- 7 Nm
- Qty. 2
9 - Spring nut
- Qty. 3
10 - Spring nut
- Qty. 2
11 - Clamping pin
- Qty. 6
12 - Wheel housing liner
13 - Bumpers
14 - Lock carrier with attachments
