Forward And Backward Seat Adjustment Motor, Assembly Overview

NOTE: If the motor is faulty, the top support of the seat pan must be replaced.

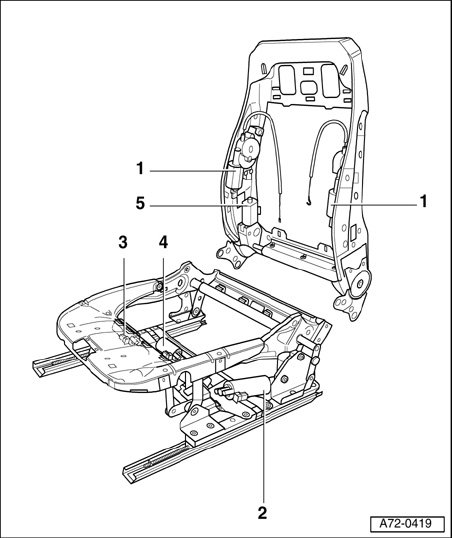

1 - Lumbar support adjustment motors (2x)
2 - Seat height adjustment motor
3 - Seat inclination adjustment motor
4 - Forward and backward seat adjustment motor
5 - Backrest adjustment motor
