Rear Seats



Head Restraints, Removing And Installing

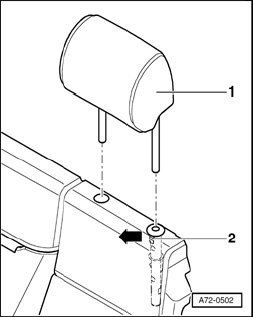

- Press cover down and using a screwdriver, pry out clip - 2 - in direction of - arrow -.
- Pull out head restraints - 1 - (2x).

- Installing
- Installation is in reverse order of removal.
