Handle Mount Trim

Handle Mount Trim

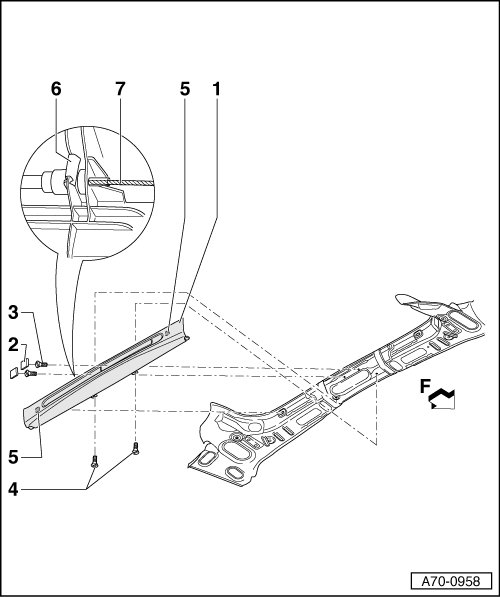

1 - Handle Mount Trim

• The convertible top must be closed.

• Pry the cover off - 2 - using a small screwdriver.

• Remove screw - 3 -.

• Lay the handle down.

• Pry the cover off - 2 - on the other side using a small flat blade screwdriver.

• Remove the second screw - 3 -.

• Remove the screws - 4 - from underneath.

• Remove the handle mount trim - 1 - at the clips - 5 - (Qty. 2).

• Pry the clip out - 6 - (always replace the clip - 6 -).

• Disengage the cable - 7 - at the handle.

2 - Cover (Qty. 2)

3 - Screws, (Qty. 2)

• Tightening specification 9 Nm

4 - Screws, (Qty. 2)

• Tightening specification 7 Nm

5 - Clips (Qty. 2)

6 - Clips

• Always replace

7 - Release
