Rear Trim, Removing and Installing

Rear Trim, Removing And Installing

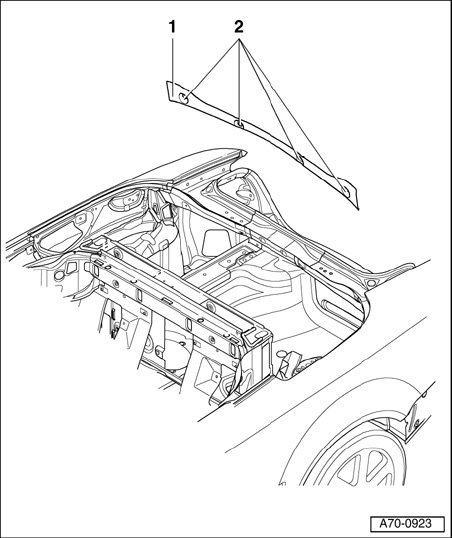

1 - Rear trim
- Removing
- Open convertible top.
- Fold convertible top compartment down.
- Unclip clips - 2 - (4x).
- Fold away seal and pull out rear trim - 1 -.
- Installing
- After installation ensure that seal is installed correctly.
- Install rear trim - 1 - in reverse order of removal.
2 - Clips (4x)
