Handle Mount Trim, Assembly Overview

Handle Mount Trim, Assembly Overview

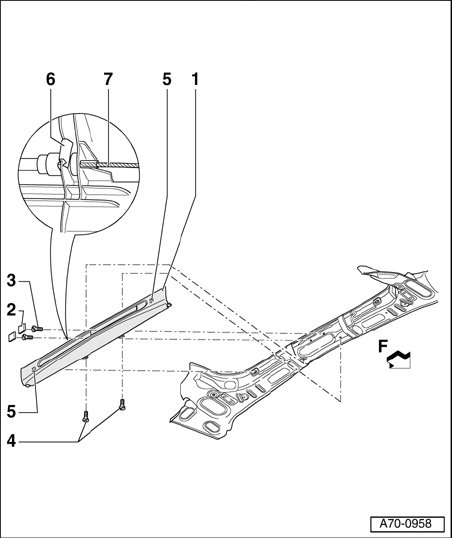

1 - Handle mount trim

NOTE: Convertible top must be closed.

- Removing
- Pry out cover - 2 - using a small flat screwdriver.
- Remove bolt - 3 -.
- Turn handle.
- Pry out cover - 2 - on other side, using a small flat screwdriver.
- Remove second bolt - 3 -.
- Remove bolts - 4 - from underneath.
- Unclip handle mount trim - 2 - from clips - 5 - (2x).
- Pry out clamp - 6 - (always replace clamp - 6 -).
- Detach Bowden cable - 7 - from handle.
2 - Cover (2x)
3 - Bolts (2x)
- Tightening torque 9 Nm
4 - Bolts (2x)
- Tightening torque 7 Nm
5 - Clips (2x)
6 - Fastener
- Always replace
7 - Bowden cable
