Guide Rail of Variable Convertible Top Compartment, Removing and Installing

Guide Rail Of Variable Convertible Top Compartment, Removing And Installing

- Remove variable convertible top compartment.







- Pull carpet - 1 - back (convertible top compartment lining) on side to be changed until both bolts - 2 - are accessible.
- Bond carpet with D 001 200.
- Remove bolts - 2 - (2x).
- Tightening torque 4 Nm
- Detach convertible top compartment center section - 3 - from side section - 4 - on right.







- Pull side sections - 1 - and - 2 - apart.

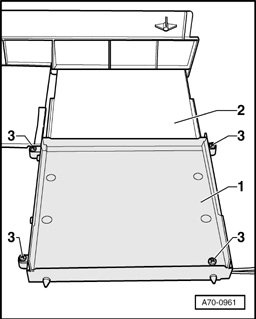

- Remove bolts - 3 - (4x) from inner lid.
- Tightening torque 2 Nm
- Detach inner lid - 1 -.







- Remove bolts - 1 - (4x) on both sides.
- Tightening torque 2 Nm

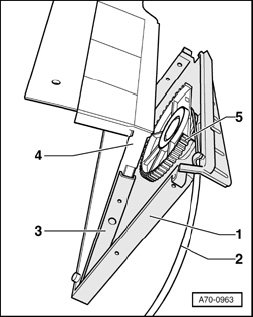

- Pull sections - 1 - and - 4 - apart upward.
- Pry guide rail - 3 - out of catch of section - 1 -.
- Separate sections - 1 - and - 4 -.







- Remove bolts - 2 - on left and right.
- Tightening torque 1 Nm
- Push guide rail - 1 - downward and out of locking tabs.
- Remove guide rail - 1 -.

- Installing
- Installation is in reverse order of removal.
