Flap, Removing and Installing

Flap, Removing And Installing

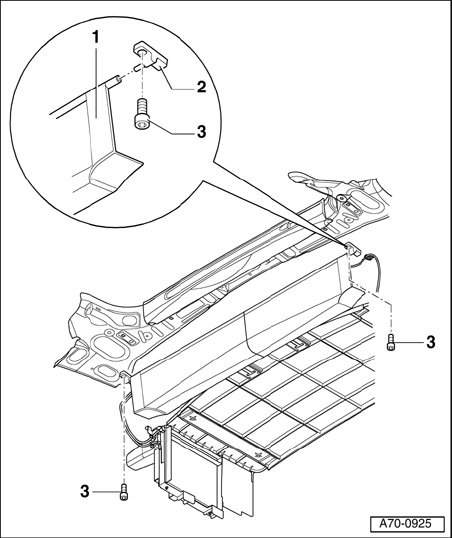

1 - Flap
- Removing
- Remove bolts - 3 - (2x) on mountings - 2 - (2x).
- Push flap - 1 - forward and detach flap - 1 - downward.
- Installing
- Install flap in reverse order of removal.
2 - Mounting (2x)
3 - Bolts (2x)
