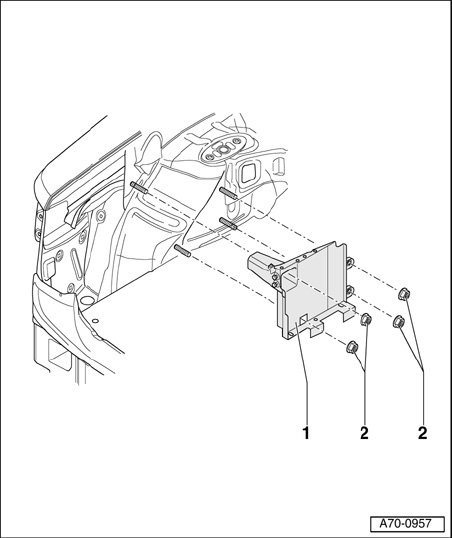

Console of Variable Convertible Top Compartment, Assembly Overview

Console Of Variable Convertible Top Compartment, Assembly Overview







1 - Console
- Remove variable convertible top compartment.
- Remove nuts - 2 - (4x).
- Lift console - 1 - upward out of body.
2 - Nuts (4x)
