Lock Cylinder, Removing and Installing

Lock cylinder, removing and installing

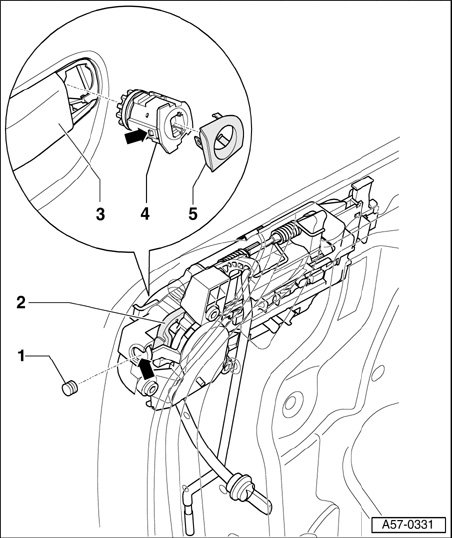

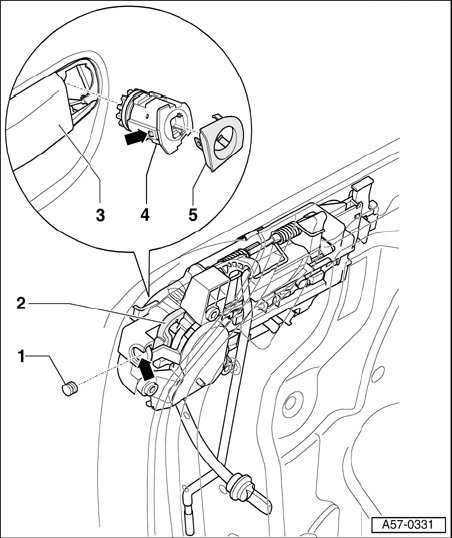

- Open drivers door and pry out cover cap - 1 -.







- Remove bolt - arrow - counter - clockwise as far as stop.
This moves the securing clip - 2 - back and releases lock cylinder.
- Remove lock cylinder - 4 - from door handle.

Installation is reverse of removal.
