Lock Cylinder Cover Cap, Removing and Installing

Lock cylinder cover cap, removing and installing

Removing

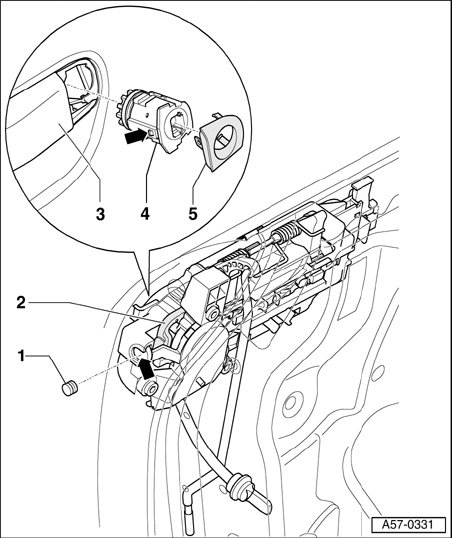

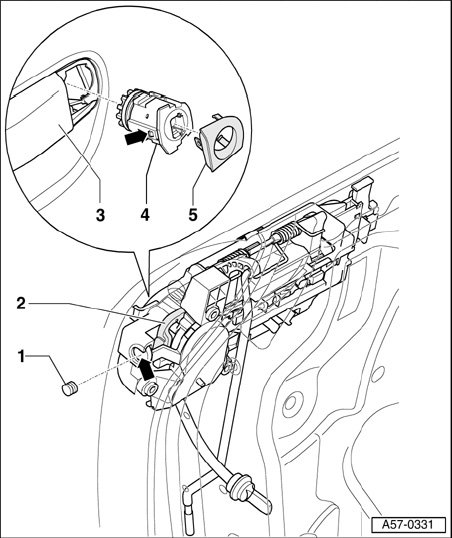

- Remove lock cylinder - 4 -.







- Carefully loosen hooks from retainer and remove cover cap sideways toward rear from locking pins.

Installing

- Insert brace with square hole on pins on housing.
- Press cover cap onto housing until locking hooks engage.
