Lock Cylinder - Assembly Overview

Lock cylinder-assembly overview

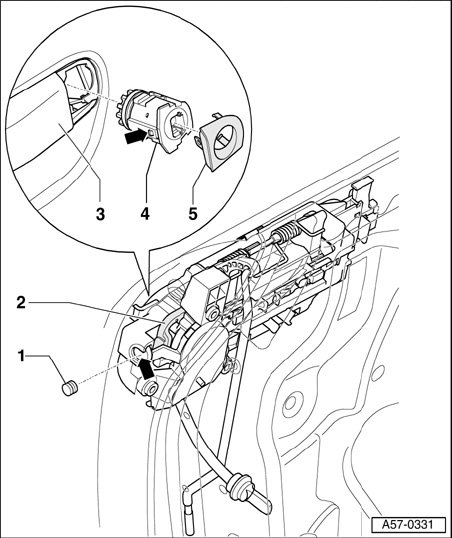

1 - Cover cap
- Pry out
2 - Securing bracket
- Engages in groove on lock cylinder.
3 - Door handle
4 - Lock cylinder
5 - Lock cylinder cover cap
