Cellular Phone Bracket, Creating Openings on Center Console

Cellular Phone Bracket, Creating Openings on Center Console

The center console is delivered as a replacement part without the holes for the cell phone retainer. The holes must be made later.

- Remove center console. Refer to => [ Center Console ] Storage Compartments and Covers.

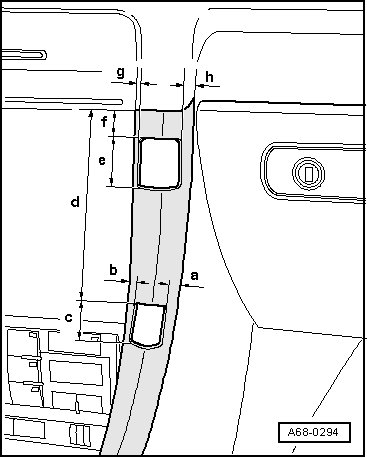

- Create holes with the following dimensions.





a 10 mm
b 6 mm
c 20 mm
d 100 mm
e 31 mm
f 8 mm
g 5 mm
h 9 mm

- Clip the threaded hole piece from behind into center console and tighten cellular phone holder to 1.5 Nm

• After installation, check whether the glove compartment will open
