Windshield Trim, Assembly Overview

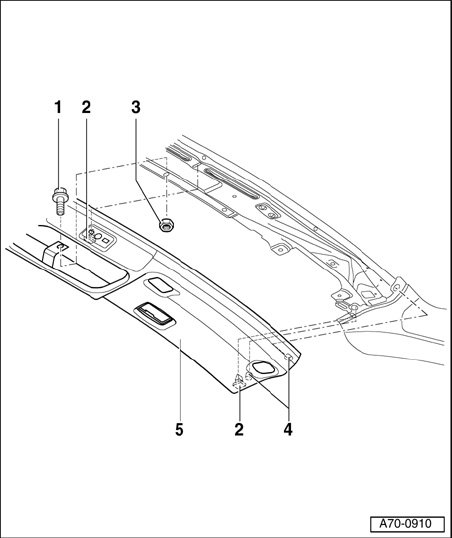

Windshield Trim, Assembly Overview







1 - Bolt
- Tightening torque 7 Nm
2 - Clips (2x)
3 - Nut
4 - Tabs (2x)
5 - Windshield trim
- Removing
- Remove interior light/reading light.
- Remove make-up mirror light.
- Remove sun visors.
- Remove sun visor mounts.
- Remove center sun visor.
- Remove nut - 3 -.
- Pry out windshield trim - 5 - at clips - 2 - (2x) and tabs - 4 - (2x) Carefully remove windshield trim - 5 - downward.
- Installing
- Install windshield trim - 5 - in reverse order of removal.
