Rear Side Trim Insulation, Assembly Overview

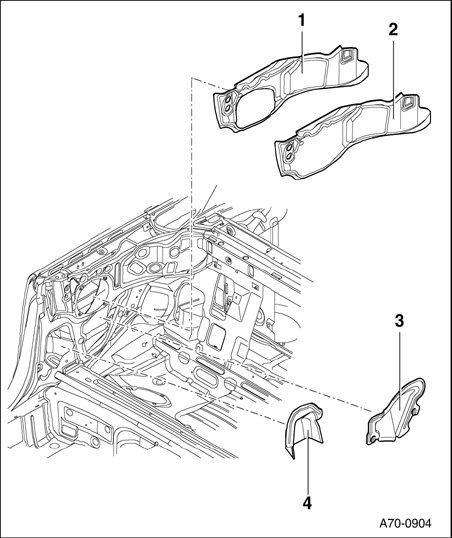

Insulation, Assembly Overview







1 - Insulation with loudspeaker installed
2 - Insulation with loudspeaker not installed
3 - Insulation
4 - Belt reel insulation
- Removing
- Remove rear bench seat.
- Remove rear seat backrest.
- Remove decorative panel.
- For belt reel insulation: Remove belt reel of front seat belt.
- For all insulation: When removing insulation, ensure that insulation does not become damaged.
- Remove insulation.
- Installing
- Press insulation evenly and firmly onto body.
- For belt reel insulation: Install belt reel.
