Emergency Triangle Bracket

Emergency Triangle Bracket

Installing or Retrofitting

- Remove the rear lid trim.

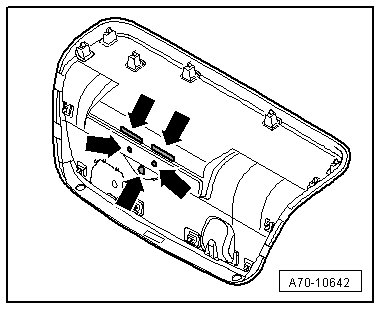

There are opening stamped onto the back of the trim for installing the warning triangle bracket.

- Use workshop clamping brackets - arrows - on the trim.

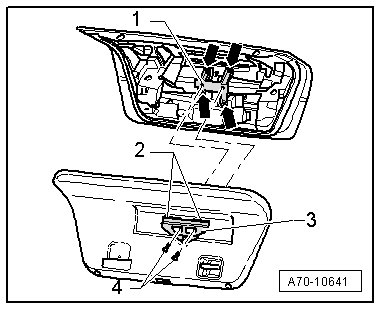

- Secure the clamping bracket - 1 - to the hole in the rear lid - arrows -.





- Remove the upper part of the clamping bracket.

- Push the lower part of the clamping bracket - 3 - from behind through the slots in the trim - 2 - and lock the upper and lower parts.

- Install the trim.

- Attach the clamping bracket with screws - 4 - to the retainer.
