Lower A-Pillar Trim, Assembly Overview

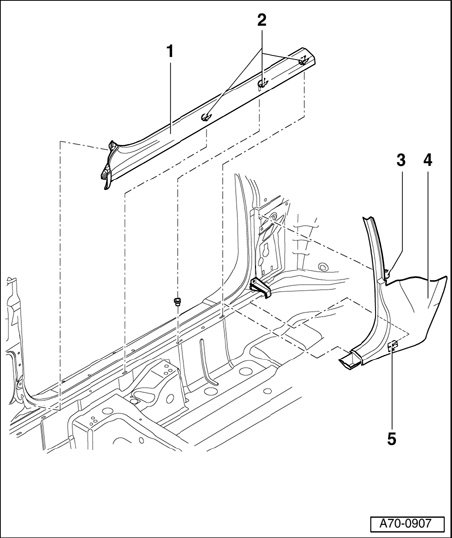

Lower A-Pillar Trim, Assembly Overview







1 - Sill panel trim
2 - Clips (3x)
3 - Clip
4 - Lower A-pillar trim
- Removing
- Unclip sill panel trim - 1 - at clips - 2 - (3x).
- Lift front sill panel trim - 1 -.
- Unclip lower A - pillar trim - 4 - at clip - 5 -.
- Press retainer tab on clip - 3 - and remove lower A-pillar trim - 4 -.
- Installing
- When installing, ensure that rubber door surround is in full contact with lower A-pillar trim - 1 -.
- Install lower A-pillar trim - 1 - in reverse order of removal.
5 - Clip
