Making Mounting Holes For Mobile Phone Holder On Center Console

When supplied as a spare part, center console has no openings or mounting holes for mobile phone holder. Openings must be created.

- Remove center console.

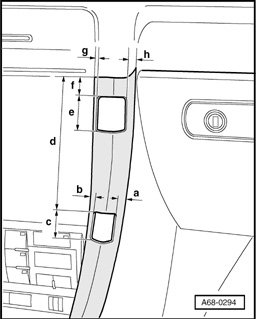

- Produce mounting holes of the following dimensions:
a - 10 mm
b - 6 mm
c - 20 mm
d - 100 mm
e - 31 mm
f - 8 mm
g - 5 mm
h - 9 mm

- Engage threaded molding -, Page in center console from rear and fasten the mobile phone holder with a torque of 1.5 Nm

NOTE: After installation check that glove compartment lid will open.
