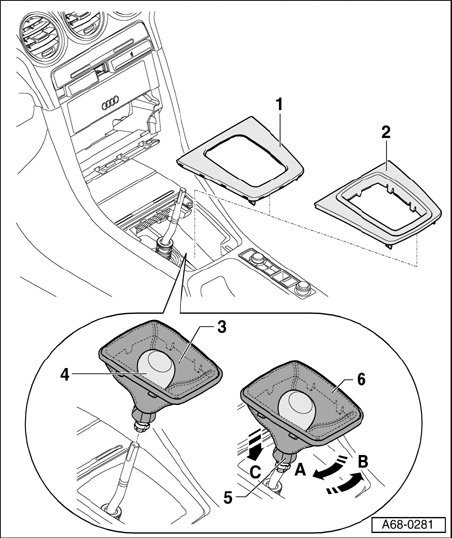

Gear Cover and Boot, Assembly Overview

Gear Cover And Boot, Assembly Overview







1 - Automatic transmission cover
- Removing
- Pry off gear cover - 1 -.
2 - Manual transmission cover
- Removing
- Pry off gear cover - 2 -.
3 - Boot
- Removing
- Unclip mounting frame - 6 -.
- Turn connecting piece - 5 - to right in direction of - arrow A - until it unlocks.
- Remove selector lever knob - 4 -.
- Installing
- Install selector lever knob - 4 -.
- Turn connecting piece - 5 - to left in direction of - arrow B - until it locks.
- Clip in mounting frame - 6 - in direction of - arrow C - arrow C.
4 - Selector lever knob
5 - Connecting piece
6 - Mounting frame
