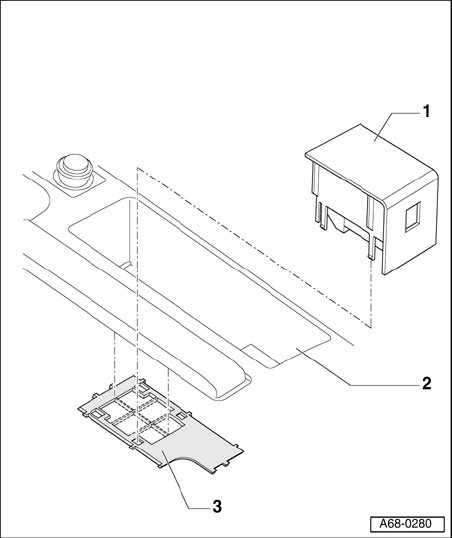

Connector Mount, Assembly Overview

Connector Mount, Assembly Overview







1 - Connector mount
- Removing
- Remove center console.
- Turn center console over.
- Pry off catch - 3 -.
- Remove connector mount - 1 - from recess - 2 -.
2 - Recess for connector mount in center console
3 - Connector mount catch
