Bracket For Telephone Handset In Center Console, Assembly Overview

Bracket For Telephone Handset In Center Console, Assembly Overview

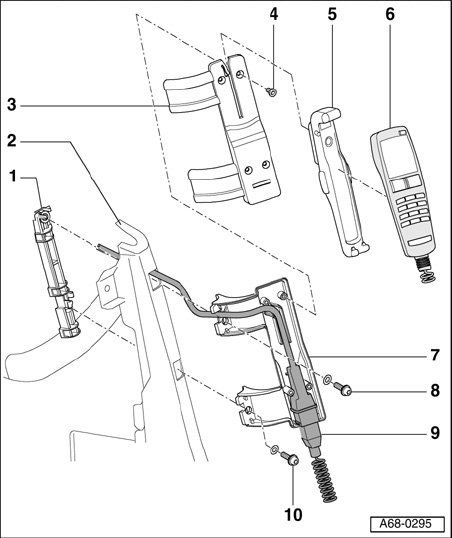

1 - Threaded molding
- Engaged in center console from rear
2 - Center console
- With mounting holes for base plate
- Retrofitting mounting holes
3 - Mounting plate
- For handset holder
4 - Bolts (4x)
- Tightening torque 0.5 Nm
5 - Receiver holder
6 - Telephone handset R37
7 - Base plate
8 - Bolt
- Tightening torque 1.5 Nm
9 - Connector

NOTE: Ensure correct seating of connector.

10 - Bolt
- Tightening torque 1.5 Nm
