Body Emblem: Service and Repair

Rear lid lettering

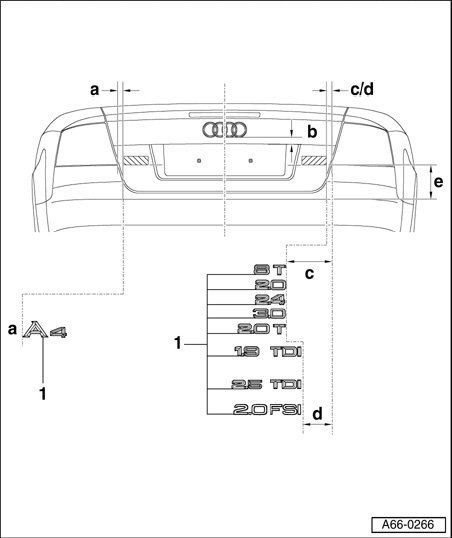

Dimensional data for front-wheel drive vehicles

NOTE: Outer edges of rear lid and lines extending from lower rear lights are used as reference edges.







1 - Name plate
- Installation:
- Warm vehicle and type designation to room temperature.
- Bonding surfaces must be dry and free from dust and grease.
- Clean outer panel with mineral spirits, treat with silicone remover and rub dry.
- Pull off backing paper and press on characters, maintaining pressure for approx. 3 seconds.

- a - = 30 mm.
- b - = 28 mm.
- c - = 36 mm.
- d - = 28 mm.
- e - = 152 mm.

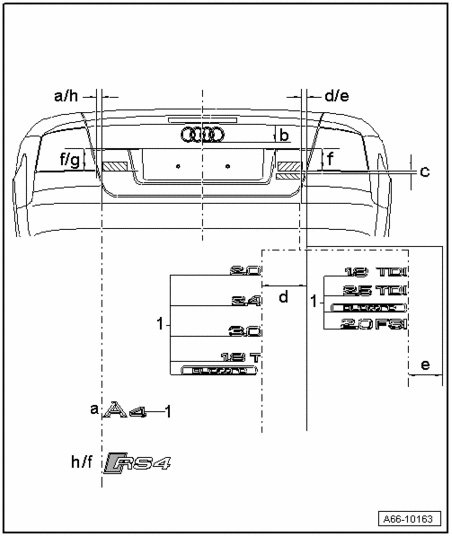

Dimensional data for All Wheel Drive (AWD) vehicles

NOTE: Outer edges of rear lid and lines extending from lower rear lights are used as reference edges.







1 - Name plate
- Installation:
- Warm vehicle and type designation to room temperature.
- Bonding surfaces must be dry and free from dust and grease.
- Clean outer panel with mineral spirits, treat with silicone remover and rub dry.
- Pull off backing paper and press on characters, maintaining pressure for approx. 3 seconds.

- a - = 30 mm.
- b - = 28 mm.
- c - = 4 mm
- d - = 36 mm.
- e - = 13 mm.
- f - = 53 mm.

NOTE: Dimensions - g - and - h - only apply to RS 4

- g- = 68 mm.
- h- = 18 mm.
