Back Panel Trim, Assembly Overview

Back Panel Trim, Assembly Overview







1 - Back panel trim
- Removing
- Remove right side trim.
- Remove left side trim.
- Remove luggage compartment floor covering.
- If installed, remove frame for ski bag.
- Ensure that convertible top is closed and convertible top compartment folded up.

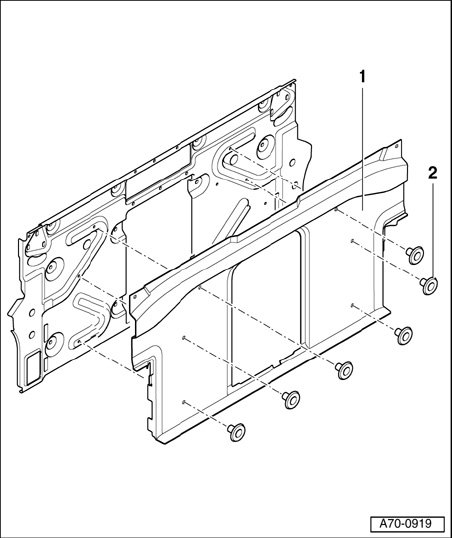

- Unclip back panel trim - 1 - at clips - 2 - (6x).
2 - Clips (6x)







1 - Clips (2x)
2 - Back panel trim
- Fold convertible top compartment down.
- Open convertible top.

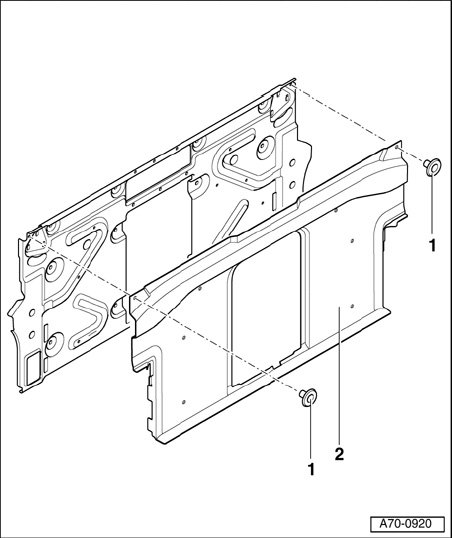

- Unclip back panel trim - 2 - at clips - 1 - (2x).
- Lift out back panel trim - 2 -.
- Removing
- Install back panel trim - 2 - in reverse order of removal.
