Hood Cable, Removing and Installing

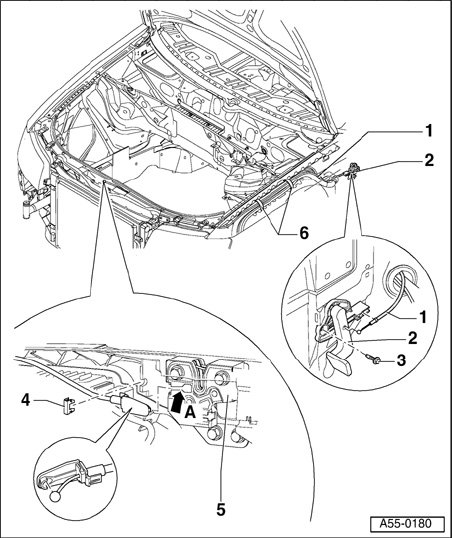

Hood cable, removing and installing







1 - Hood cable

- Removing:
- Remove front wheelhousing liner.
- Remove storage compartment on drivers side (vehicles with knee bolster): or Vehicles without knee bolster:
- Remove bolt.
- Remove retaining clip.
- Unclip cable for lower part of hood lock and disengage attachment lug-arrow A -.
- Remove cable from retaining clips opened earlier and pull into wheelhousing toward lock carrier.
- Install in reverse sequence.
- Bring ball on cable for lower part of hood lock into installation position.
2 - Operating lever
3 - Screw
- 2.4 Nm
4 - Retaining clamp
5 - Lower part of hood lock
- Removing and installing.
- Can be used to adjust height of hood.
6 - Retaining clip.
