Antenna, Navigation: Service and Repair

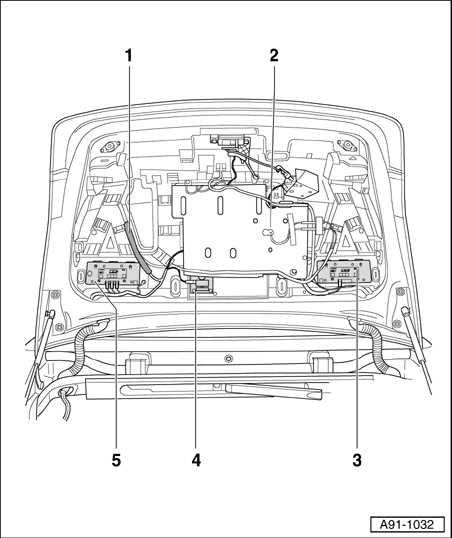

Antennas In Rear Lid - Overview







1. Central Locking and Anti-theft Alarm System Antenna -R47-
2. Satellite Tuner Antenna -R172-
3. Right Antenna Module -R109-
4. Navigation antenna (GPS) -R50-
5. Left Antenna Module -R108-







Fig. 1 Left Antenna Module -R108-, removing and installing
- Remove rear lid trim.
- Unplug electrical connectors -2-.
- Remove bolts -arrows- and remove left antenna module -1-.
- Connect harness connectors according to the color coding.
- Tighten connections of antenna module to 3.5 Nm.







Fig. 2 Right Antenna Module -R109-, removing and installing
- Remove rear lid trim.
- Unplug electrical connector -2-.
- Remove bolts -arrows- and remove right antenna module -1-.
- Tighten connections of antenna module to 3.5 Nm.







Fig. 3 Antenna for Navigation System (GPS) -R50-, removing and installing
- Remove rear lid trim.
- Unplug connector -1-.
- Remove bolts -arrows- and remove GPS antenna -2-.
- Tighten connections of GPS antenna to 3.5 Nm.
