01J, Continuously Variable Transmission (CVT)

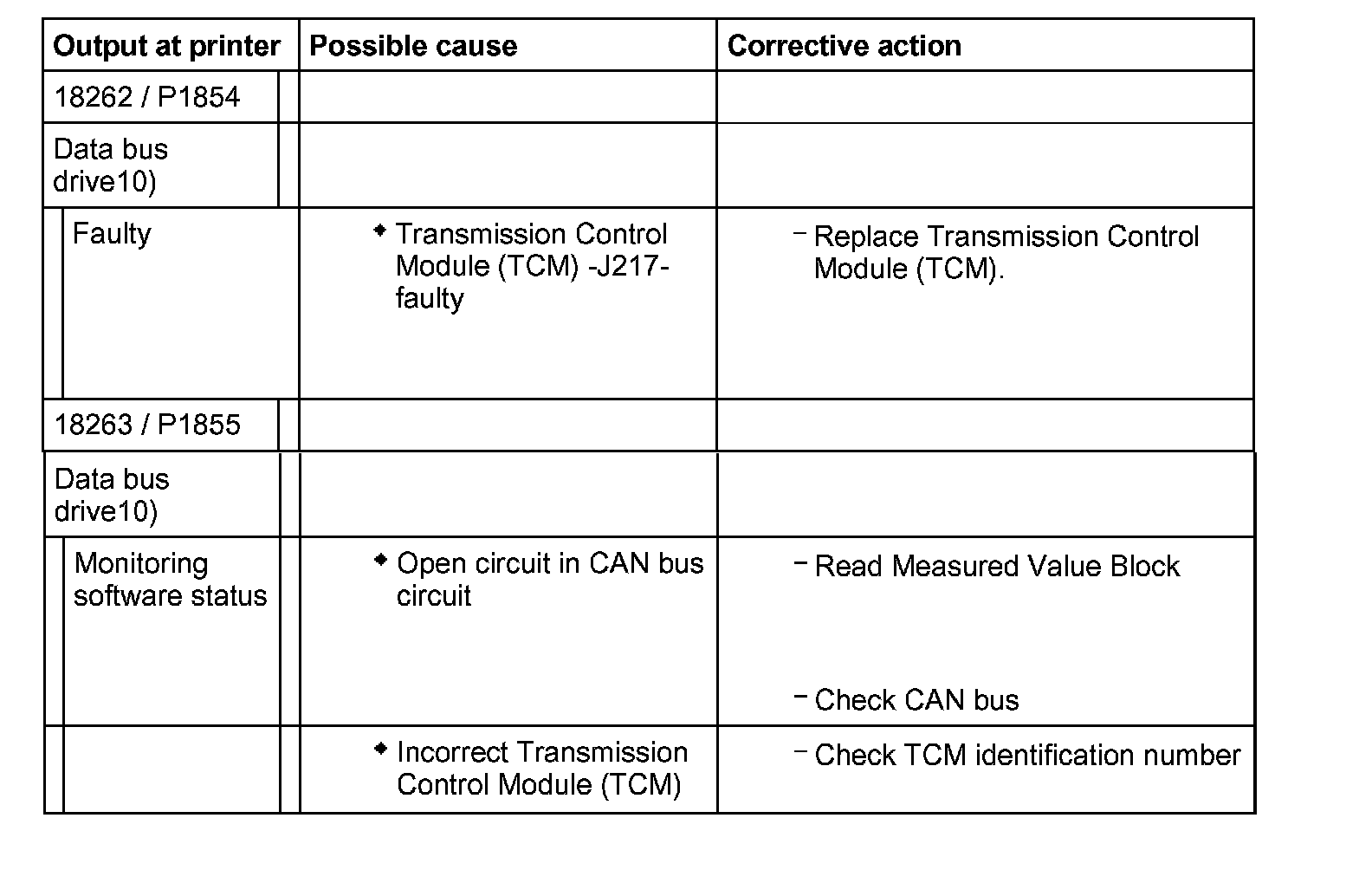

DTC 18262 / P1854 and DTC 18263 / P1855 - 01J, Continuously Variable Transmission (CVT)





10) The data bus is also described as a CAN bus.

Note on DTC 18262 / P1854:
^ The exchange of data and information between the Engine Control Module (ECM), ABS control module, Transmission Control Module (TCM) and instrument cluster is carried out over what is called a CAN bus. All information signals are transmitted over 2 leads.

Note on DTC 18263 / P1855:
^ The exchange of data and information between the Engine Control Module (ECM), ABS control module, Transmission Control Module (TCM) and instrument cluster is carried out over what is called a CAN bus. All information signals are transmitted over 2 leads.
