01J, Continuously Variable Transmission (CVT)

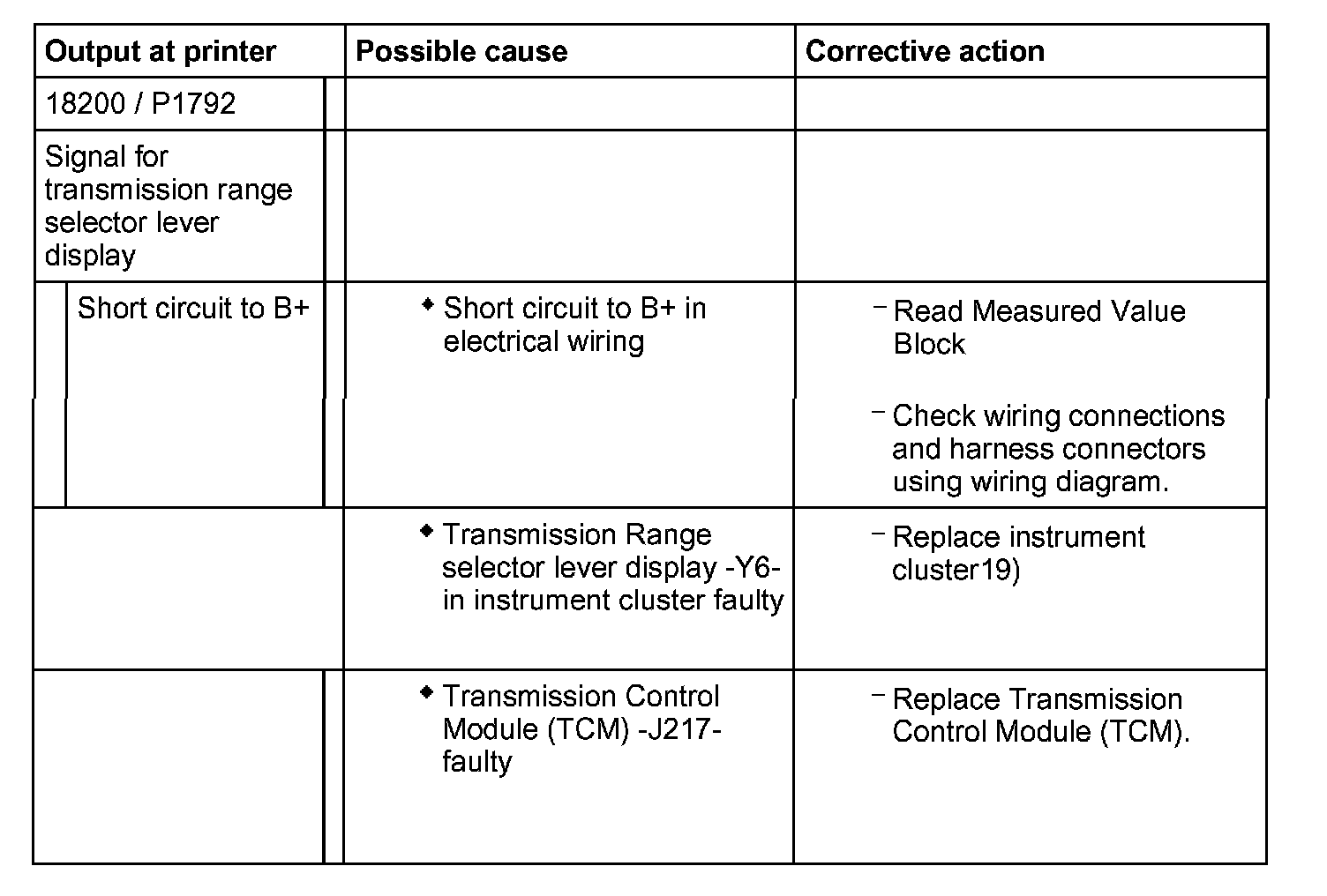

DTC 18200 / P1792 - 01J, Continuously Variable Transmission (CVT)





19) The Transmission Range selector lever display -Y6- is integrated in the instrument cluster and can only be replaced as a unit with the instrument cluster.
