P1761
>>
01J, Continuously Variable Transmission (CVT)
01J, Continuously Variable Transmission (CVT)

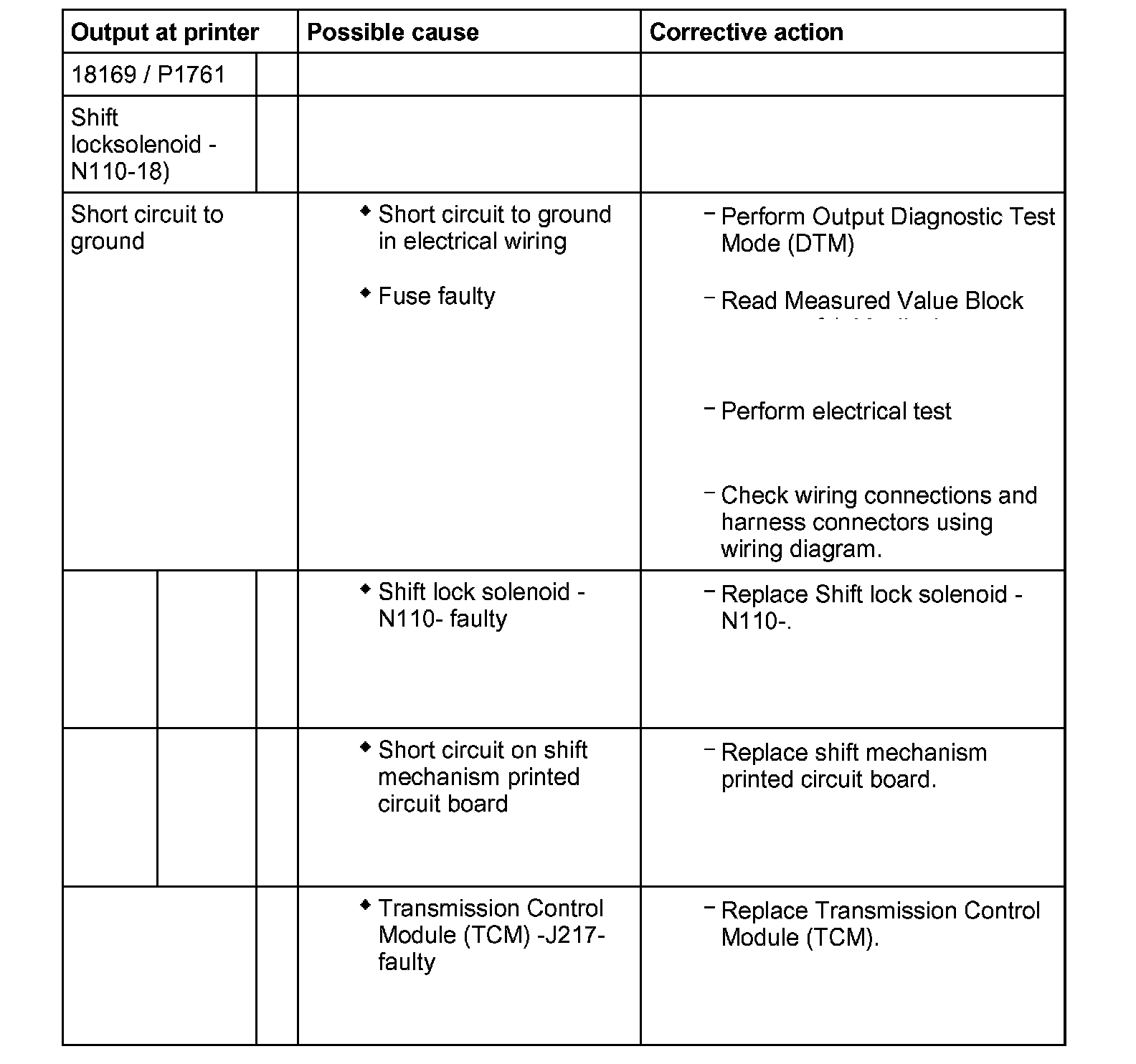

DTC 18169 / P1761 - 01J, Continuously Variable Transmission (CVT)
18
Shift lock solenoid -N110- is also described as selector lever lock solenoid.
