01J, Continuously Variable Transmission (CVT)

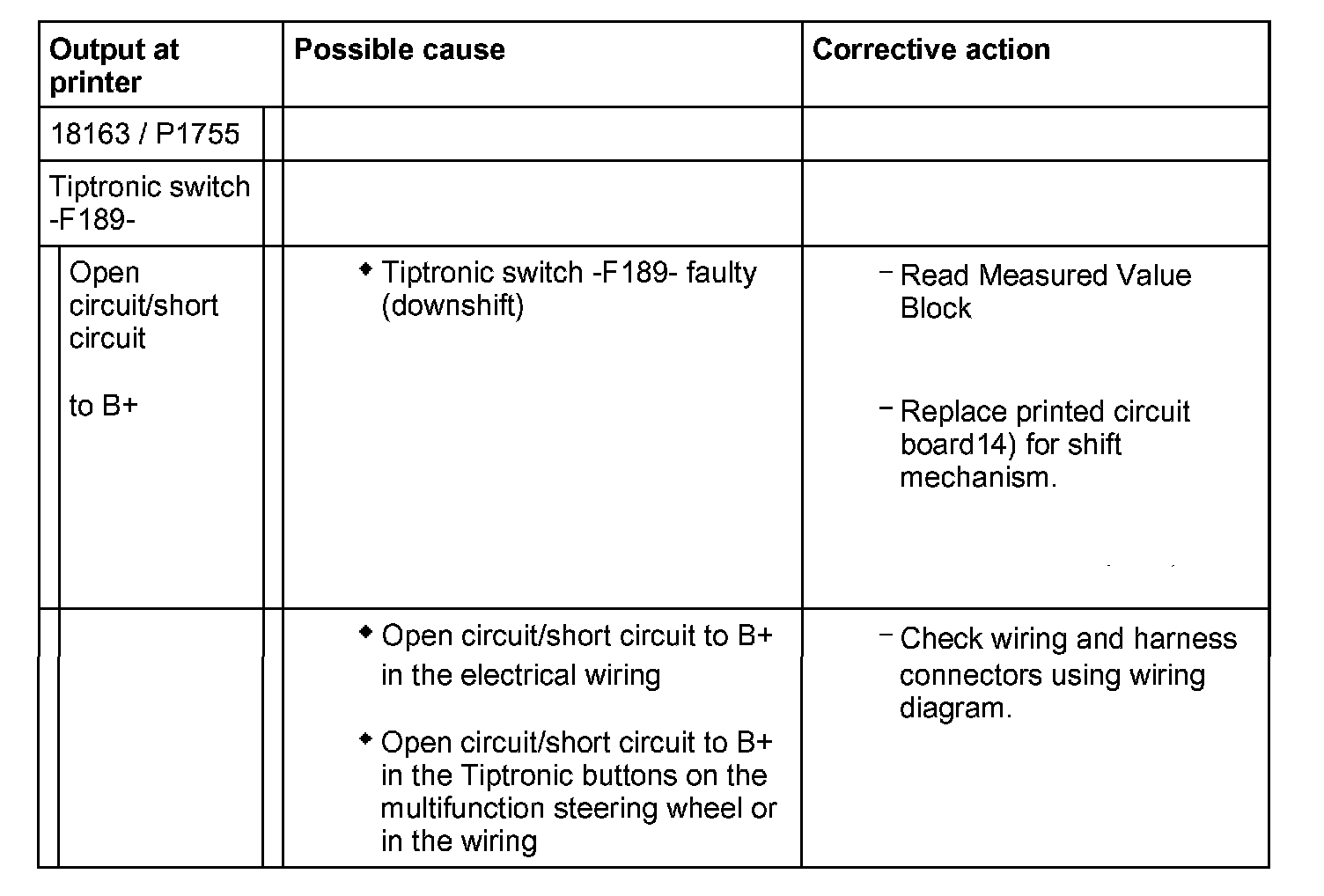

DTC 18163 / P1755 - 01J, Continuously Variable Transmission (CVT)





14) The Tiptronic switch -F189- consists of switches for recognition, upshift and downshift. It is integrated in the shift mechanism printed circuit board, i.e. if the Tiptronic switch -F189- is faulty, the printed circuit board has to be replaced.
