Home >> Audi >> 2007 >> A4 Cabriolet (8HE) L4-2.0L Turbo (BWT) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> P Code Charts >> P1753 >> 01J, Continuously Variable Transmission (CVT)

01J, Continuously Variable Transmission (CVT)

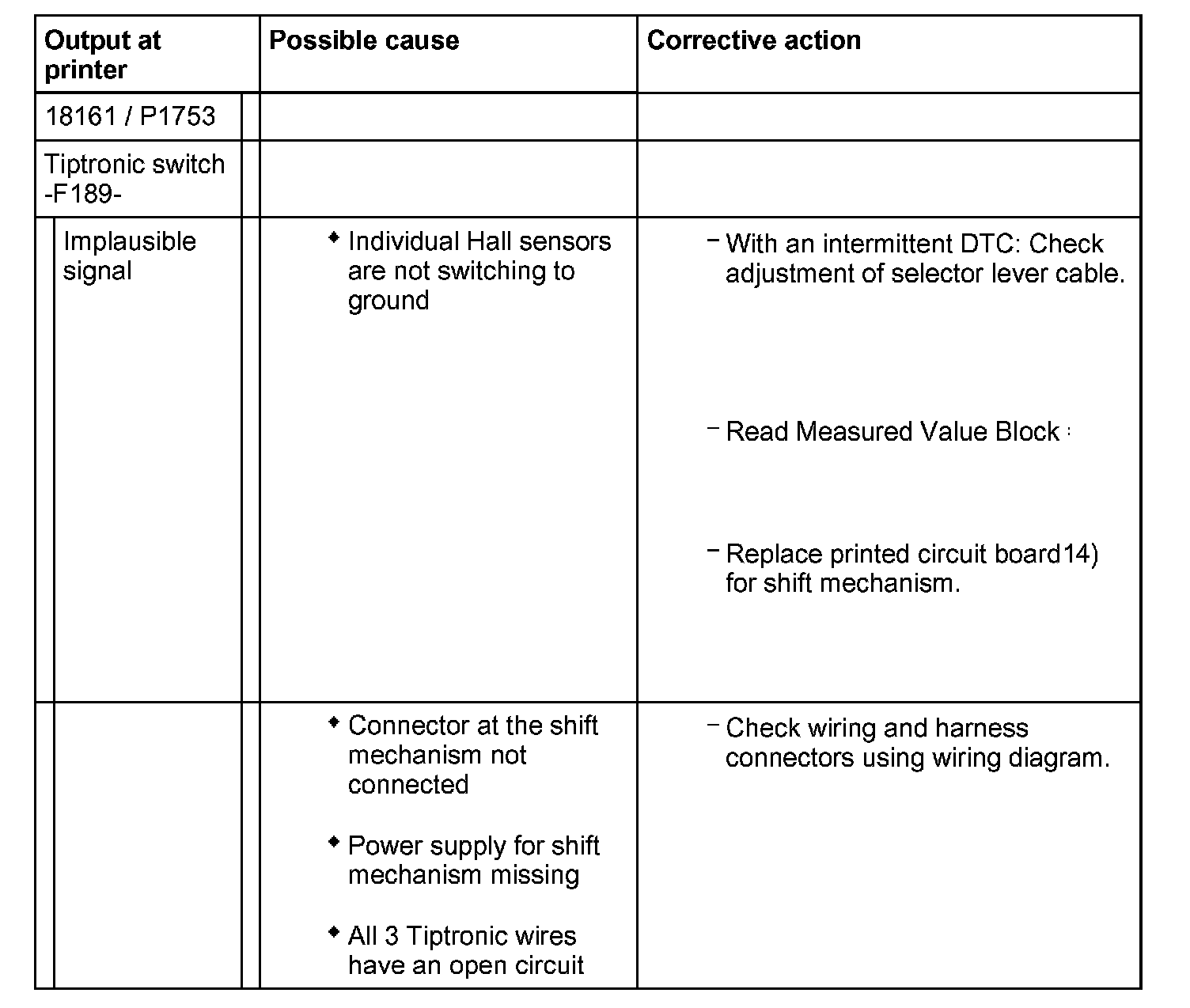

DTC 18161 / P1753 - 01J, Continuously Variable Transmission (CVT)





14) The Tiptronic switch -F189- consists of switches for recognition, upshift and downshift. It is integrated in the shift mechanism printed circuit board, i.e. if the Tiptronic switch -F189- is faulty, the printed circuit board has to be replaced.
