01J, Continuously Variable Transmission (CVT)

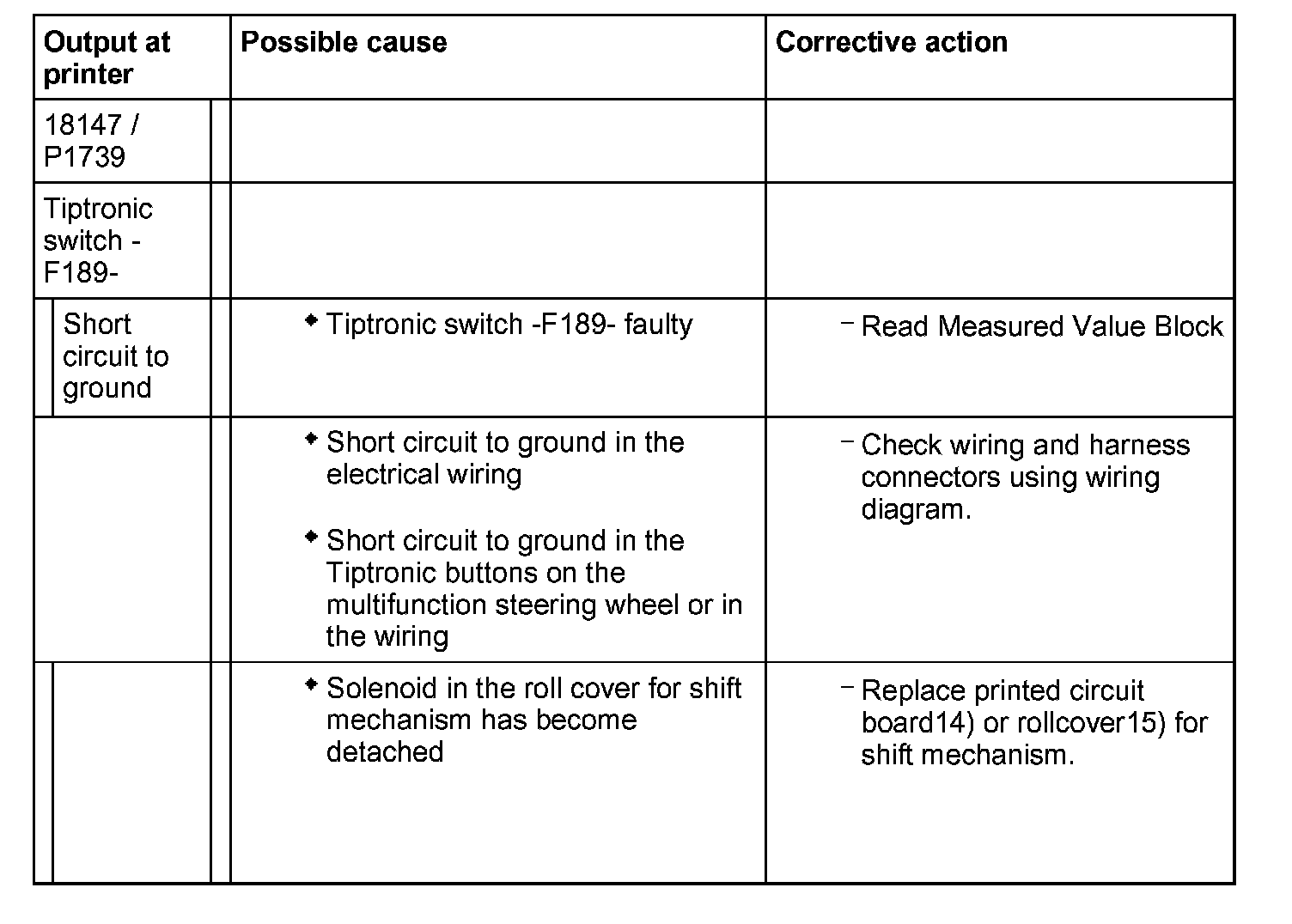

DTC 18147 / P1739 - 01J, Continuously Variable Transmission (CVT)





14) The Tiptronic switch -F189- consists of switches for recognition, upshift and downshift. It is integrated in the shift mechanism printed circuit board, i.e. if the Tiptronic switch is faulty, the printed circuit board has to be replaced.
15) The Tiptronic switch -F189- receives its Tiptronic gate recognition or upshift/downshift information through the solenoid on the transverse slide of the roll cover. If the solenoid has become detached, the cover must be replaced.

Note on DTC 18147 / P1739:
^ In the case of this DTC "Upshift switch" is always displayed in Measured Value Block 003.
