01J, Continuously Variable Transmission (CVT)

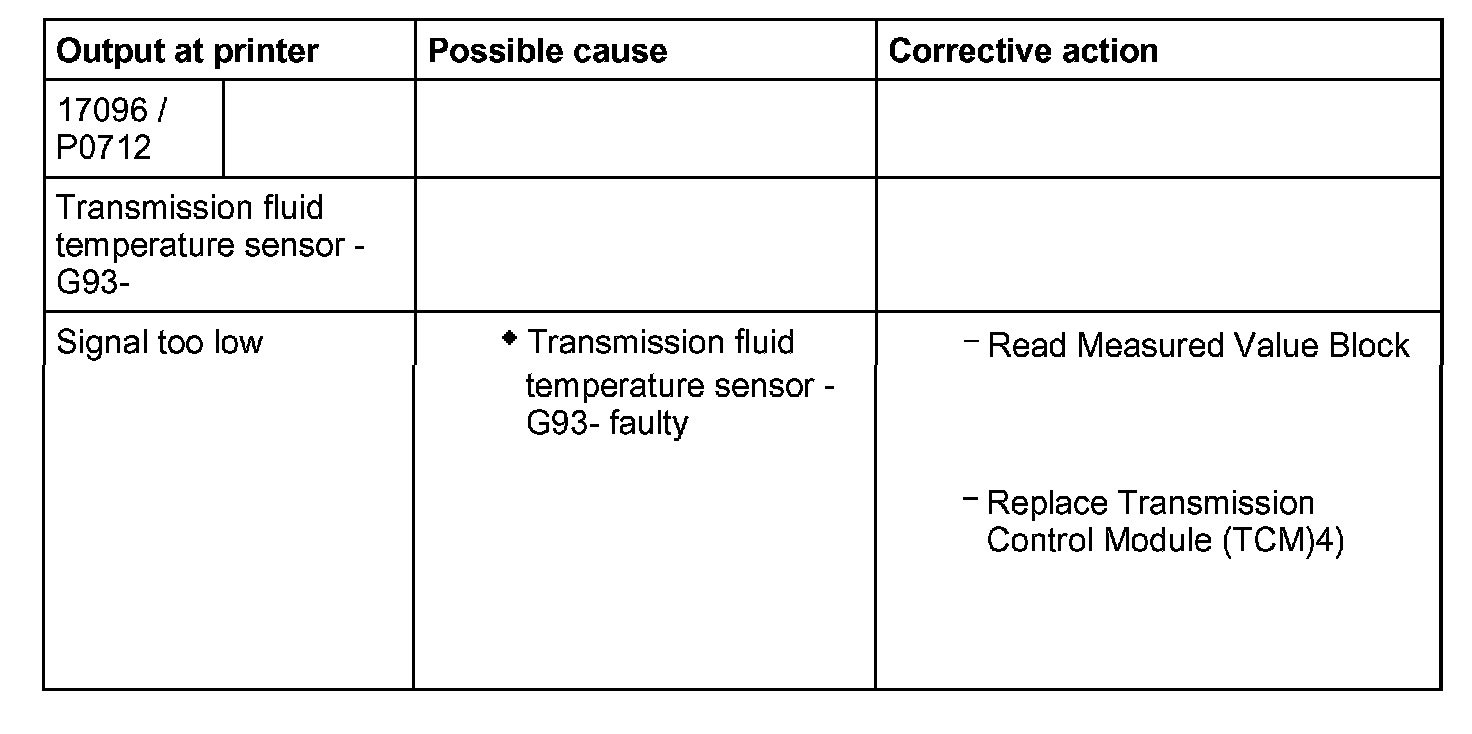

DTC 17096 / P0712 - 01J, Continuously Variable Transmission (CVT)





4) The Transmission fluid temperature sensor -G93- is integrated in the Transmission Control Module (TCM) -J217- and can only be replaced as a unit along with the Transmission Control Module (TCM).

Note on DTC 17096 / P0712:
^ Condition for DTC recognition: The temperature reading measured fell below -60 ° C.
