Transmission Housing, Servicing

Transmission housing (transmission as of approx. 04.2003), servicing, 02M/02Y, 5 & 6 Speed M/T, AWD

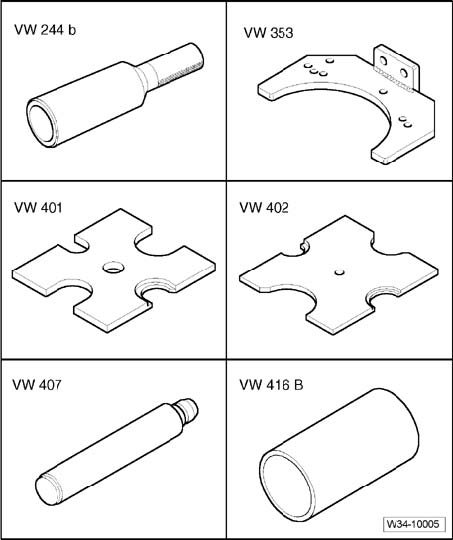

Special tools, testers and auxiliary items required
^ Driving sleeve VW 244 B
^ Transmission support VW 353
^ Thrust plate VW 401
^ Thrust plate VW 402
^ Punch VW 407
^ Tube VW 416 B

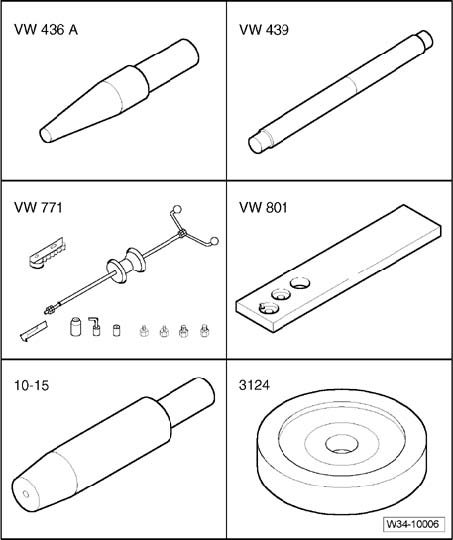

Special tools, testers and auxiliary items required
^ Guide pin VW 436 A
^ Guide pin VW 439
^ Slide Hammer-Complete Set VW771
^ Holding fixture VW 801
^ Guide pins 10-15
^ Thrust pad 3124

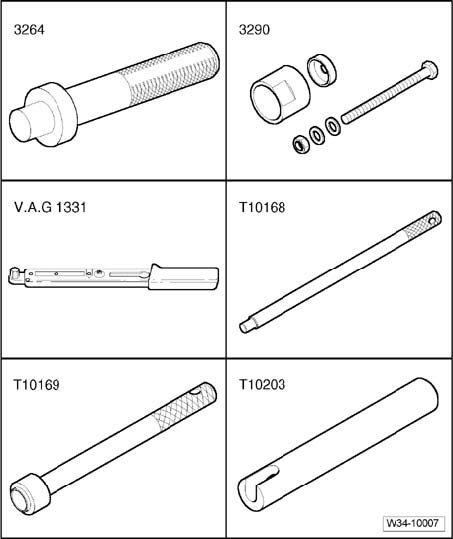

Special tools, testers and auxiliary items required
^ Bearing driver 3264
^ Subframe Support Assm. Device 3290
^ Torque wrench V.A.G 1331
^ Mandrel T10168
^ Mandrel T10169
^ Thrust piece T10203

Special tools, testers and auxiliary items required





^ - 1 - Internal extractor Kukko 21/2 and Kukko 21/4
^ - 4 - Support Kukko 22/2
