Cover For Haldex Clutch From Disc Housing, Removing and Installing

Cover for Haldex clutch from disc housing, removing and installing

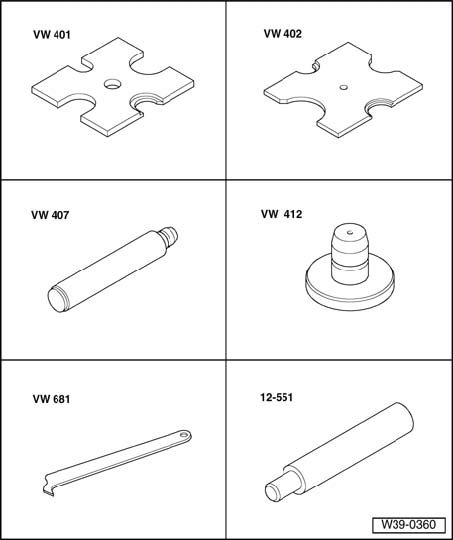

Special tools, testers and auxiliary items required
^ Pressure plate VW 401
^ Pressure plate VW 402
^ Punch VW 407
^ Punch VW 412
^ Extractor lever VW 681
^ Centering mandrel V.A.G 12-551

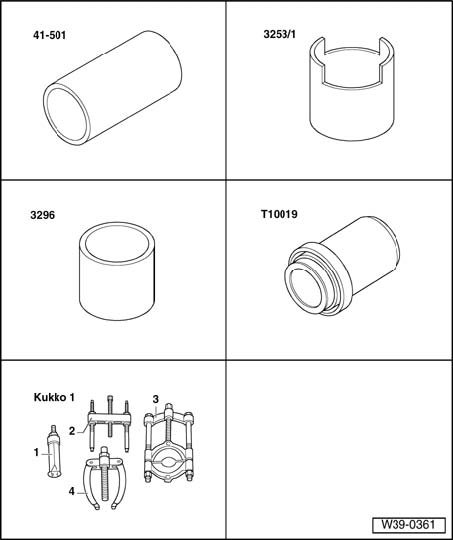

Special tools, testers and auxiliary items required
^ Drive bushing V.A.G 41-501
^ Tube 3253/1
^ Tube VAS 3296
^ Thrust piece T10019
^ 1 Kukko 21/2 Internal puller
^ 4 Kukko 22/1 Counter-support

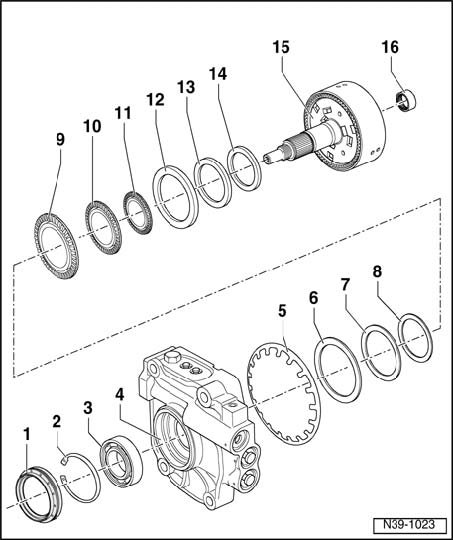

1 - Seal
^ For drive shaft flange
^ Replace Sealing ring for flange/drive shaft on rear final drive (final drive removed), replacing
^ Remove with Pry Lever VW 681
^ Drive in flush using Pressure Piece T10019

2 - Circlip

3 - Grooved ball bearing
^ Pressing out
^ Pressing in

4 - Cover for Haldex clutch
^ Valves in cover cannot be replaced

5 - Plate spring
^ Note varying thickness

6 - Disc for axial needle bearing

7 - Disc for axial needle bearing

8 - Disc for axial needle bearing

9 - Axial needle bearing

10 - Axial needle bearing

11 - Axial needle bearing

12 - Thrust washer

13 - Thrust washer

14 - Thrust washer

15 - Disc housing
^ Pressing off from cover for Haldex clutch

16 - Needle bearing
^ Pulling out
^ Pressing in





Pressing off grooved ball bearing from cover for Haldex clutch
- Remove circlip beforehand.





Pressing grooved ball bearing into cover for Haldex clutch
- Install circlip.





Pulling needle bearing out of disc housing
A - Counter support, e.g. Kukko 22/1
B - Internal puller 14.5 to 18.5 mm, e.g. Kukko 21/2
C - Jaw protectors





Pressing in needle bearing to stop into disc housing
