Haldex Clutch and Clutch Discs Cover, Removing and Installing

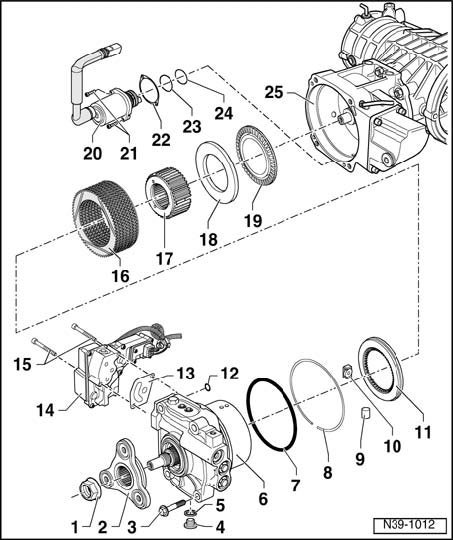

Haldex clutch and clutch discs cover, removing and installing





1 - Hex nut, 220 Nm
^ Unfastening
^ Fastening
^ Insert with locking fluid D 000 600

2 - Drive shaft flange
^ Pulling off

3 - Bolt, 50 Nm

4 - Oil drain plug, 15 Nm
^ For Haldex clutch oil

5 - Seal
^ Always replace

6 - Cover for Haldex clutch
^ Remove together with disc housing
^ To install, detach from disc housing

7 - O-ring
^ Always replace
^ Coat with high performance oil for Haldex clutch

8 - Ring
^ Insert into drive pinion housing

9 - Roller
^ Qty. 3

10 - Track roller
^ Qty. 6

11 - Cam disc
^ Observe installed location

12 - O-ring
^ Qty. 3
^ Always replace
^ Insert in cover for Haldex clutch

13 - Gasket
^ Always replace
^ For some final drives, O-rings may also be installed, Fig. NO1-0234

14 - All-Wheel Drive Control Module J492

15 - Socket head cap bolt, 6 Nm

16 - Disc pack
^ Note installation position of outer and inner clutch discs

17 - Hub

18 - Thrust washer
^ Observe installed location

19 - Axial needle bearing
^ With thrust washer for axial needle bearing
^ Installed location

20 - Haldex Clutch Pump V 181

21 - Socket head cap bolt, 6 Nm

22 - Gasket
^ Not present on all Haldex clutches
^ If present, remove during repair

23 - O-ring
^ Always replace

24 - O-ring
^ Always replace

25 - Drive pinion housing
