Clutch Mechanism, Servicing

Clutch mechanism, servicing, 02M/02Y, 5 & 6 Speed M/T, AWD

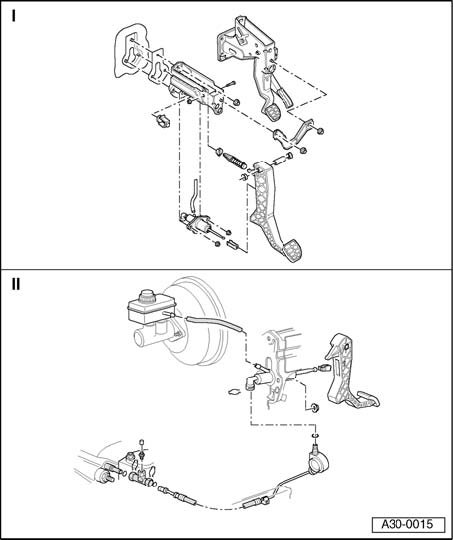

I - Foot pedal assembly, assembly overview

II - Hydraulics, assembly overview

Note:
^ Lubricate all bearing and contact surfaces with polycarbamide grease G 052 142 A2.
^ Make sure that no brake fluid enters the footwell, plenum chamber or reaches the transmission below. If this does happen, clean this area thoroughly.
^ When working in floor area, cover the carpet with a cloth to protect against any leaking brake fluid.
