Front Wheel Brake Lines, AWD, Removing and Installing

Front Wheel Brake Lines, AWD, Removing and Installing

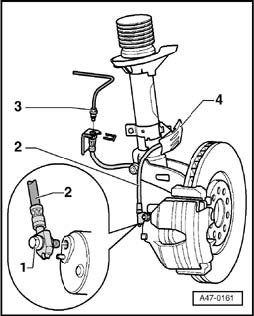

1. Banjo bolt - 35 Nm
2. Brake line - 14 Nm
3. Retaining clip
4. Heat shield

^ Mounting to suspension strut see illustration below.
