Headlamp Washer Spray Nozzle: Service and Repair

Headlight Washer Spray Jets, Removing And Installing

CAUTION:
Before beginning repairs on the electrical system:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

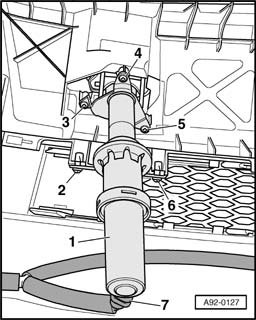

- The two headlight washer spray jets are supplied from the washer fluid reservoir via hose -1-.

Removing
- Remove front bumper







- Depress retainer and remove hose coupling -7- at jet -1-.
- Remove screws -3-, -4- and -5-.
- Remove screws -2- and -6- at mounting.
- Remove spray jet.

Installing
Install in reverse order of removal, noting the following:
- Install front bumper

Tightening torque

Spray jet to bumper 2.5 Nm
