Front Door Window Regulator: Service and Repair

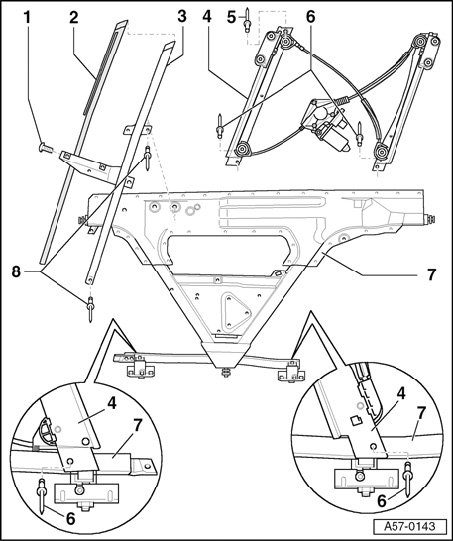

Window Lifter, Removing And Installing







1 - Combi bolts
- 8 Nm
2 - Seal
- Pull out to remove.
- For easier installation, lubricate with soap solution and slip into guide rail.
3 - Guide rail
- Remove door subframe.
- To remove, unscrew combi bolt - 1 - and drill off heads from rivets - 9 -.
4 - Window lifter
- Remove door subframe.
- To remove, drill off heads from tubular rivets - 5 -, - 6 - and - 8 -.
- Take out window lifter.
- Position of cable Fig. 1







5 - Tubular rivet
6 - Tubular rivet
7 - Door subframe
8 - Tubular rivet
9 - Tubular rivet







Fig. 1 Position of cable for window lifter

- Install window lifter - 1 - in such a way that cable guide - 3 - is on inside of door subframe - 2 -.
- Cable guide - 4 - should be on outside of door subframe.
- Clip cable guide - 3 - into holder - arrow -.
