Spacers And Stopper Profile For Adhesive, Glueing On

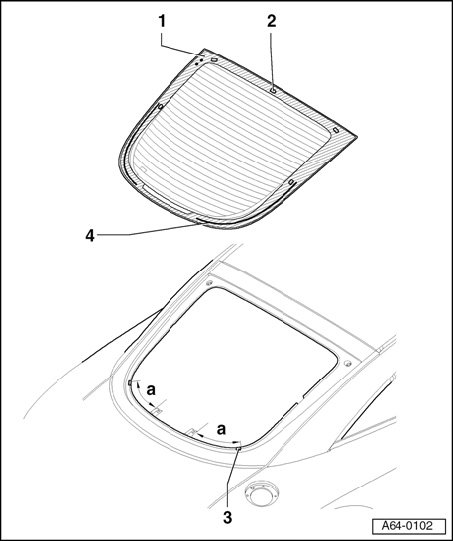

1 - Rear window
2 - Upper spacers (5x)
- Glue on spacers in center between upper edge of window and ceramic screen printing. Also apply spacers on left and right toward edge of screen printing.
- Glue on side spacers in center between side edge of window and ceramic screen printing, as well as toward bottom edge of connection for rear-window heating.







3 - Lower spacers (2x)
- Glue lower spacers onto window flange at a distance a = 230 mm from bracket for third brake light flush with inside edge on left and right.
4 - Stopper profile for adhesive
- Stopper profile should be made from two pieces to form a total length of 670 mm
- Stopper profile for adhesive prevents primer/adhesive from coming into contact with conductor strip
- Glueing on Fig. 1







Fig. 1 Glueing on guard strip for adhesive

- Make two stopper profiles - 2 - with length - C - of 670 mm out of three replacement parts.
- Starting at arrow - A - and working upward, stick stopper profile onto rear window - 1 - at edge of conductor strip.
- Connection for antenna - 3 -.
