Sender For Transmission Output RPM - G195-, Removing and Installing

Sender for transmission output RPM - G195 -, removing and installing, 09G, 6 Speed A/T

Note:
^ Be familiar with the rules for cleanliness when working on the automatic transmission.
^ General repair instructions.

Removing
- Disconnect battery.
- Remove oil pan.
- Remove ATF screen.
- Remove valve body.

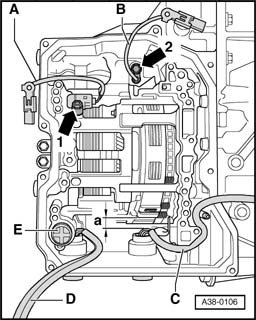

- Remove bolt - 2 -.
- Remove sender - G195 - with wire -B- from transmission.

Installation is performed in the reverse order; note the following:
- Coat O-ring on sender with ATF.
- Press sender - G195 - carefully up to limit stop in transmission.
- Tighten M5 bolt to 6.5 Nm.
