Wiring Harness With 14-Pin Connector, Removing and Installing

Wiring harness with 14-pin connector, removing and installing, 09G, 6 Speed A/T

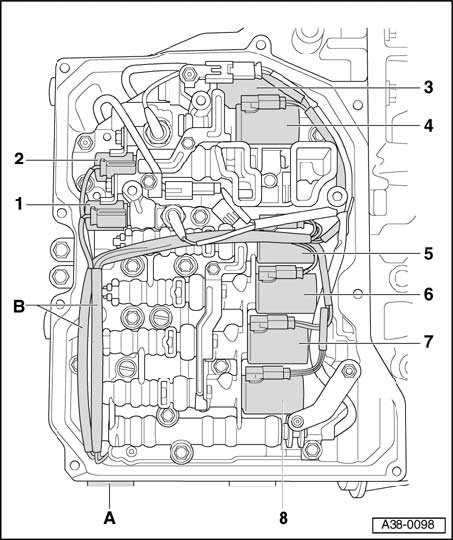

Overview
A - Connector, 14-pin
B - Wiring harness to 14-pin connector -A-

^ Designation of solenoid valves and wiring harness routing.

Note:
^ Be familiar with the rules for cleanliness when working on the automatic transmission.
^ General repair instructions.

Removing
- Disconnect battery.
- Remove oil pan.
- Remove ATF screen.
- Remove valve body.

With transmission installed only:





- Disconnect 14-pin connector -A- from transmission connector.

Continuation for all:

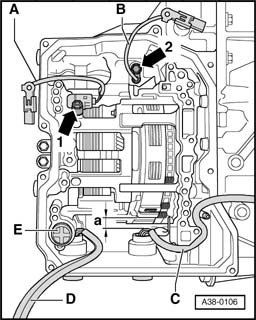

- Remove securing bolt of 14-pin connector on outside of transmission housing.





- Remove connector from transmission housing and carefully guide wiring harness -D- after it.

Installing
Installation is performed in the reverse order; note the following:
- Install a new O-ring on connector.
- Coat O-ring with ATF.
- Press connector with O-ring installed to limit stop in transmission.
- Tighten bolt for connector to 5.5 Nm.
